Computer Programs in Seismology Tutorial

Introduction

The purpose of this note is to compare the fundamental solutions generated using Randall's and Herrmann's codes for Green's functions used for moment tensor studies. There are eight different solutions that must be compared.

For the comparison synthetics will be generated for the CUS model, a source depth of 15 km and an epicentral distance of 500 km. The command sequences use are as follow:

Herrmann

      #!/bin/sh
      HS=15.0
      cat > dfile << EOF
      500.0     1       1024 -1.0 13.0
      EOF
      hprep96 -M CUS.mod -HS ${HS}  -d dfile -ALL
      hspec96
      hpulse96 -V -p -l 1 > file96
      f96tosac -G < file96


The model file is CUS.mod

The Herrmann Greens functions have the names 050000150.RDD 050000150.RHF 050000150.TDS 050000150.ZDD 050000150.ZHF 050000150.RDS 050000150.RSS 050000150.THF 050000150.ZDS 050000150.ZSS 050000150.REX 050000150.RVF 050000150.TSS 050000150.ZEX 050000150.ZVF and are in units of ground velocity of cm/s for a step-like source time function for a seismic moment of 1.0E+20 dyne-cm.

Randall

time mijkennett << EOF
rCUS.mod
EOF
#
# -d for displacement, 13 reducing velocity, -1.0 time shift
#
#1e9,0.0
xtsynth -d <<EOF
13.0,-1.0
EOF

#####
#       put to Langston convention
#####
for i in *_mxx
do
B=ZSS.PLT
echo ZSS
gfconvert ZSS ZSS 1.0
done

The model file is rCUS.mod

The Randall Greens function have names like r_0500_0015_pz.clv t_0500_0015_pz.clv and z_0500_0015_pz.clv which are identical. We use the following files for the comparison: z_0500_0015_pz.clv z_0500_0015_pz.vds z_0500_0015_sr.clv z_0500_0015_sr.vds z_0500_0015_st.vds z_0500_0015_pz.iso z_0500_0015_pz.vss z_0500_0015_sr.iso z_0500_0015_sr.vss z_0500_0015_st.vss and are in units of ground velocity of cm/s for a step-like source time function for a seismic moment of 1.0E+20 dyne-cm.

Preparation for Comparison

The Green's functions are filtered using the gsac commands

hp c 0.01 n 3
lp c 0.10 n 3

Plots are created showing the first 300 seconds of the traces. Traces in a plot have hte same vertical scale.

Since the Herrmann Green's functions are in units of velocity, these are integrated for comparison after the filter operations:

int

The focus of the comparison is on long periods, for which the slight difference in Q models will not be significant. However there will be slight timing differences since Randall's code uses acausal Q for reasons of speed, which the Herrmann code uses causal Q.

Comparison

Herrmann	Randall	Comparison	Herrmann	Randall	Comparison

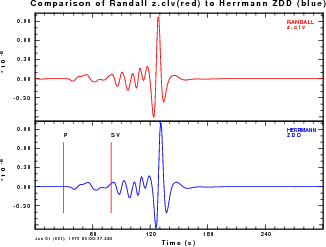

ZDD	z.clv		RDD	r.clv

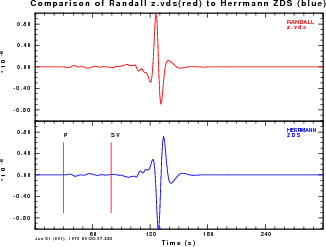

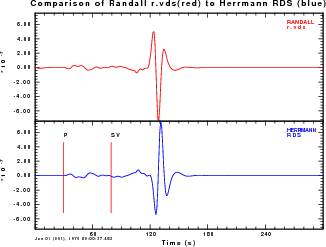

ZDS	z.vds		RDS	r.vds

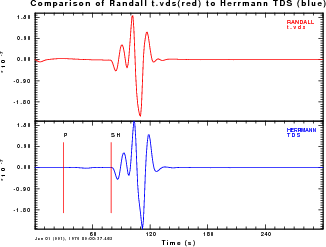

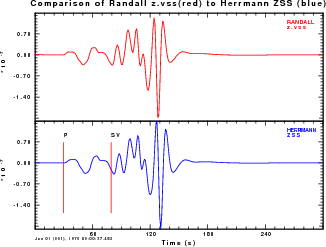

TDS	t.vds		ZSS	z.vss

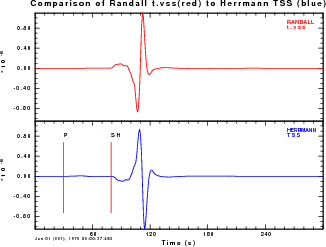

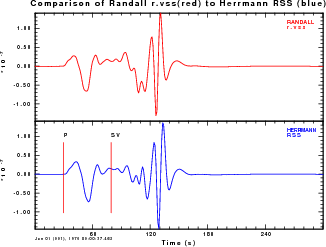

RSS	r.vss		TSS	t.vss

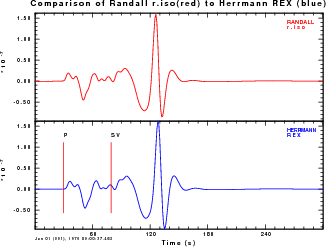

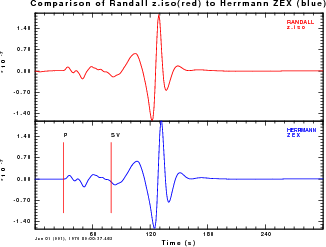

ZEX	z.iso		REX	r.iso

Conclusion

The conclusions from this test are that the 'z.vds/ZDS', 'r.vds/RDS' and 't.vss/TSS' differ only in sign. After sign correction, the amplitudes of all agree.

Thus for the Greens functions form Herrmann's Computer Programs in Seismology can be used with code which previously use the Randall Green's functions, this difference is accounted for.
