Introduction
The purpose of this page is to notify users of the Computer
Program in Seismology (CPS) package of repairs or extensions made
to the code. Whenever this page is updated, the down-loadable
version of CPS is updated and provided to users.
Enhancements to Version 3.30 codes
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023,
2024, 2025
For each year, the changes are (listed in order from newest to
oldest)
2025
April 7, 2025
- The current distribution is NP330.Apr-07-2025.tgz
March 29, 2025
- The current distribution is NP330.Mar-29-2025.tgz
- Updated hspec96strain so that it works better when the source and receiver depths are near. A new tutorial was created to test the current code.
- Corrected VOLVIII/gsac.src/gsac_fileid.c where case statement for H_DEPMAX was not followed by a break; increased MAXSTR from 40 to 50
- Added more control for dy pltsac when trace overlay is requested. See the scripts for the new tutorial on strain.
March 20, 2025
-
The source code for VolIX/src/cpulse96.f was corrected so that it would
properly handle a user input source time function. This was an opportunity to
discuss the use of this file and to offer an alternative method of defining the source time function. This is discussed in CPULSE96fix.
January 26, 2025
- The current distribution is NP330.Jan-26-2025.tgz
January 26, 2025
- Created the program hwhole96strain which extends whole96.
This new code provides the analytic Fourier transforms of the Green's functions and their d/dz for a homogeneous, isotropic medium that are used to producing strain series when used with hpusle96strain. As such these are faster to run hspec96strain for this simple medium. One use of these wholespace codes for a wholespace is to test the numerical wavenumber integration of hspec96 and hspec96strain, especially at lower frequencies.
January 17, 2025
2024
December 1, 2024
- Modified the position of the subscript in the SUBS command of calplt by moving it slightly to the left for a better presentation.
- The current version is NP330.Nov-30-2024.tgz
November 12, 2024
October 17, 2024
- The current distribution is NP330.Oct-17-2024.tgz
- All code compiles with the latest versions of gcc/gfortran
and clang/flang.
September 11, 2024
- Installed readline-8.2 to replace readline-8.1. To remove
warnings from the clang compiler, text.c bind.c and
rltty.c were corrected to replace the C language syntax of the
form
void proc(j)
int j ;
{
with
void proc(int j)
{
to be compatible with modern C standards. The problematic syntax
occurred in three source files:
rltty.c:83:1: warning: a function definition without a prototype is deprecated in all versions of C and is
not supported in C2x [-Wdeprecated-non-prototype]
set_winsize (tty)
^
1 warning generated.
bind.c:1170:1: warning: a function definition without a prototype is deprecated in all versions of C and is
not supported in C2x [-Wdeprecated-non-prototype]
parse_comparison_op (s, indp)
^
1 warning generated.
text.c:1767:1: warning: a function definition without a prototype is deprecated in all versions of C and is
not supported in C2x [-Wdeprecated-non-prototype]
_rl_char_search_callback (data)
^
1 warning generated.
August 7, 2024
- Created the program srfpar96 to list the partial
derivatives of the observed dispersion with respect to P- and
S-velocities and layer thickness. This differs from the srfker96
which did not require actual dispersion. The program is
described in the tutorial under SWKERNELS1. It is
invoke by the sequence of commands sprep96, sdisp96
1 and srfpar96. The subroutine outputpar
can be easily modified to reformat the, partials of the
users inversion code. This code was requested by a
researcher who wanted to invert more than dispersion
observations. A tutorial on the use of srfpar96 is
given at SWKERNELS1
- Added makefiles to support LLVM compilers clang and flang.
In addition Makefiles for older compilers and systems were
removed, e.g., OSX, SOL, SLU, LNX, LNX64, OSX, OSF and
CYG. Only LINUX6440, OSXM, OSXintel, LINUXllvm and
OSXMllvm are provided. This was tested on flang/clang 18.1.3
on Linux MINT 22 and flang 18.1.8 / clang 15.0.0 on MacOS
Sonoma 14.6.1.
July 30, 2024
- Modified sdisp96 and tdisp96 as follows:
- an issue arose with some if statements:
-
if(i.ne.1 .and. c1.ge.eroot(i-1)) then
c2=c22
tadd=-dabs(tadd)
c write(LOT,*)'catch a reverse dispersion tadd=',tadd
if(c2.eq.c22) go to 550
endif
The major problem here is that it seemed as if the old
compilers evaluated the i.ne.1 first and if this failed,
then the c1.gt.eroor(i-1). The current compilers seem to
evaluate the i.ne.1 and c1.ge.eroot(i-1) is parallel. If
the i==1 then the second has an invalid memory reference
at eroot(0). In addition it is assume that i != 0.
The solution is to replace the compound "if" statement by
two "if" statements.
if(i.gt.1)then
if(c1.ge.eroot(i-1))then
c2=c22
tadd=-dabs(tadd)
c write(LOT,*)'catch a reverse dispersion tadd=',tadd
if(c2.eq.c22) go to 550
endif
endif
and
- The original code assumed that the highest velocities were
at the halfspace. If the fastest velocities are above the
halfspace, the phase velocity search would attempt to find
solutions that leaked into the halfspace, and thus were not
surface waves. At line 383 and similarly for tdisp96,f,
change
-
c-----
c solid layer solve halfspace period equation
c-----
cmin = betmn
call gtsolh(a(jmn),b(jmn),cmin)
cmin=.95*cmin
cmax = betmx
endif
to
c solid layer solve halfspace period equation
c-----
cmin = betmn
call gtsolh(a(jmn),b(jmn),cmin)
cmin=.95*cmin
cmax = betmx
c-----
c RBH 2024/07/28 ensure that betmx is
c not less than the halfspace S velocity for elastic
c-----
if(betmx.gt.b(mmax))then
betmx = b(mmax)
cmax = betmx
endif
endif
The usage prompt for sdpder96 was corrected.
May 27, 2024
- Corrected spectra plots of the commands plotsp and plotsppk
to place y-axis tic marks on the right.
May 17, 2024
- In plotting the lune diagram with fmplot
the red circle indicating the lune position of the input
moment tensor was often under other annotation. The source
code now places the plotting of this symbol other annotation.
May 11, 2024
- Corrected an error in genplt (PROGRAMS.330/CALPLOT/Utility/genplt.f)
which did not always plot error bars when requested. The
problem was due to undefined variables. This is a caution that
all routines should use the implicit none to force
all variable to be defined.
April 19, 2024
- The current release is
NP330.Apr-25-2024.tgz
- Corrected an error in sdpegn96 and tdpegn96 subroutine
output where gpoly was invoked with solsiz
undefined. The symbol size was set to 0.03.
April 18, 2024
- The current release is
NP330.Apr-18-2024.tgz
- Corrected a bug in the execution of the mt (momentensor)
command of gsac. The source file gsac_mt.c
was modified in testing the command option FILE.
The line
{MT_FILE, "FILE", CHDR, NO, 1, NO, "File fileproto ", -1},
was changed to
{MT_FILE, "FILE", CHDR, NO, 1, NO, "File fileproto ", 4},
to force the 4 character keyword FILE to be recognized.
- C. J. Ammon noted that the first arrival time for SH in a
medium with a fluid layer was incorrect. This occurs in subroutine
fstarr in the programs for isotropic media: spulse96,
spulse96strain, refmod96, time96, timmod96,
hpulse96strain, hspec96, hspec96strain,
and rspec96. This routine is used to compute
first arrival times. Rather than making the logic
of the code harder to understand, the effective velocity for
the SH in the fluid layers in isotropic models is set to
0.001 VP in the programs. The result will be a
predicted refracted arrival time that will be ignored since it
will not be the first arrival.
For codes the work with TI models, e.g., tpulse96,
ttime96, ttimmod96, hprep96, tspec96
and tspec96strain, a fix has not been created yet
because the code is more complicated. To compute travel times
one has to solve the eigenvalue problem.
March 7, 2024
February 14, 2024
- Created new programs to compute eigenfunctions for isotropic
media. The rlegn96 and rregn96 use
generalized reflection matrices rather than propagator
matrices to compute the eigenfunctions. This necessary
to be able to handle a medium with a significant low velocity
layer within which eigenfunctions have significant amplitude
and which decay toward the surface. Note: at present
these codes will not handle fluid layers or a completely fluid
medium. The latter case would be useful to study the
generation of signals from a source in the oceanic SOFAR
layer.
February 12, 2024
- The gsac command writesp was
updated to permit writing the phase, real and imaginary parts.
Previously only the amplitude spectrum was saved. in addition
the options B and O permit the
phase to be computed with respect to the B or O markers.
Finally the options RLIM and AMPH create two
Sac files as a function of frequency: RLIM creates a .rl
and .im files while AMPH creates the .am and .ph phases where
these suffixes are added to the end of the file name.
- A change was made to the internal logic of do_mft that
led to some loss of variable contents when the Tomo option
was invoked.
- genplt Added some initialization lines after the call
pinitf(). The problem was that one instance that
ended with the color red and when several of these plot
files were concatenated the wrong colors were plotted.
- sdpsrf96, sdpegn96, sdpder96
- slegn96, sregn96, tlegn96, tregn96 Corrected an
error for spherical models by which the phase velocity partial
derivatives with respect layer thickness, density and
velocities were set to zero.
2023
November 29, 2023
- A comparison of the output of hspec96 (propagator
matrices) and rspec96 (generalized reflection
matrices) show a difference in the synthetics if the source
(and presumably the receiver) are placed at a layer boundary.
Using the CUS model which has a layer boundary at a depth of
10 km, the Green's functions were similar but not identical
for a source depth of 10km. The Green's function were
identical for a source depth of 11 km in the same model. The
difference for a source depth of 10 km can be due at which
side of the layer discontinuity the code samples the
medium parameters to the ΔB stress-displacement
discontinuity or the ΣU and ΣD
potential coefficients. This is not a major problem that has
to be addressed.
October 26, 2023
- The current release is
NP330.Oct-26-2023.tgz
- gsac is at version 1.1.64 dated 24 OCT 2023
-
The sync/synchronize command has an option to
synchronize on the end of the file, e.g.,
GSAC> sync e
This was needed for code testing. The Sac header defines a
reference time, and then offsets to that time in the B, E,
O, A, T1, ...,T9 headers. To set a travel time, it is
simplest to set the reference time to the origin time (of
course the origin time must already have been set) and then
set the arrival time marker to the travel time, for example
as as in
GSAC> sync o
GSAC> ch A 25.0
If this is to be done within a SHELL script, one would do
something like
P_traveltime=25.0
gsac << EOF
sync o
ch A ${P_traveltime}
wh
q
EOF
- IRIS code.
- rdseed.The CPS distribution has always
distributed a SLU version of rdseed and evalresp.
rdseed is not longer supported and the older code
will not compile using modern compilers such as clang.
I still need to use rdseed. The rdseedv5.3
distribution had binaries for LINUX (rdseed.rh6.linux_64)
and MacOS Intel (rdseed.mac.x86.64). The LINUX version
works under LINUX and the MacOS Intel version works on an
M2 MacBook Air using the internal conversion code of Intel
binaries to M1/M2 binaries in MacOS Ventura. These are
installed in PROGRAMS.330/bin under the name rdseed.
- evalresp. Previous CPS distributions used evalresp-3.3.3.slu.
The current distribution is based on evalresp.4.0.6
and distributed as evalresp-4.0.6.slu. The SLU
changes were made to eliminate compiler warnings in libsrc/evalresp/regexp.c
and libsrc/mxml/mxmldoc.c.
- mxmldoc.c: Replace puts(MXML_VERSION +
10) by puts(MXML_VERSION). The purpose
of the original code was to skip the first 10
characters if the strng MXML_VERSION.
- regexp.c: The code was OK but the syntax was
not quite modern C. The original Kernighan and Ritchie
C did not have procedure prototypes. This one miigh
have something like
int evr_regexec (prog, string, log) register regexp *prog;
register char *string;
evalresp_logger *log;
{
code
}
Modern C wants
/* prototype */
static void regoptail (char *p, char *val, evalresp_logger *log);
...
/* actual procdure */
static void regoptail (char *p, char *val, evalresp_logger *log){
code
}
The compiler complaint here was that the evalresp-4.0.6
code was a mixture of the two styles
/* prototype */
static void regoptail (char *p, char *val, evalresp_logger *log);
...
/* actual procdure */
int evr_regexec (prog, string, log) register regexp *prog;
register char *string;
evalresp_logger *log;
{
code
}
The underlying CODE was not changed in the SLU,
version. Just the procedure description was rewritten.
- fmlpr: gcc Version 12.3.0 on LINX warned about
line 139, 167 and 211 in VOLV/src/fmlpr.c 2hich
were
139 | sprintf(m.evtime,"%2.2d:%2.2d:%2.2d:%1.1d",hour,minute,second,(int)((millisecond%1000)/100));
167 | sprintf(n.evtime,"%2.2d:%2.2d:%2.2d.%1.1d",hour,minute,second,millisecond/100);
211 | sprintf(n.timestamp,"S-%4.4d%2.2d%2.2d%2.2d%2.2d%2.2d",
1900+gmt->tm_year,1+gmt->tm_mon,gmt->tm_mday,gmt->tm_hour,gmt->tm_min,gmt->tm_sec);
The reason for the warning was the possibility of overflow
of the m.evtime, n.evtime and n.timestamp
strings. Buffer overflow has often been used to break into
comptuer systems. These structure elements are defined in
the files msg.h and ndk.h. The solution is
some ugly code that ensires that the arguments of the sprintf
statements are positive integers of the same maximum
length:
sprintf(m.evtime,"%2.2d:%2.2d:%2.2d:%1.1d",hour,minute,second,abs(((int)((millisecond%1000)/100))%10));
...
sprintf(n.evtime,"%2.2d:%2.2d:%2.2d.%1.1d",hour,minute,second,abs(((int)millisecond/100)%10));
...
sprintf(n.timestamp,"S-%4.4d%2.2d%2.2d%2.2d%2.2d%2.2d",
abs(1900+gmt->tm_year)%9999,abs(1+gmt->tm_mon)%100,abs(gmt->tm_mday)%100,abs(gmt->tm_hour)%100,abs(gmt->tm_min)%100,abs(gmt->tm_sec)%100);
August 28, 2023
-
Added extra comments to tdpder96
of VOLIII to indicate
that one of the partials is with respect to η where η=F/(A-2L) in terms of the TI material
parameters.
-
Added -XN xnumscl -YN ynumscl to pltsac to increase
the size of the axis labels. The default is 0.07
(e.g., 70 CALPLOT units). With this option the size
will be xnumscl*0.07 or ynumscl*0.7.
-
hudson96 was completely
rewritten because of a need to document the method in
detail. The result is cleaner code. In addition a
correction was made for the T* time shift. Other than
this slight difference, the output is the same as tha
given by the previous version.
May 11, 2023
-
Finally applied a spell check to
the online help for gsac
-
Added -XN xnumscl -YN ynumscl to the GSAC pctl
command. The default size of the axis labels is 0.10
(e.g., 100 CALPLOT units). With this option then will be xnumscl
* 0.10 or ynumscl * 0.10 . This
was added to improve the presentation of figures for
publication.
May 2, 2023
-
Updated the documentation for
the SLAT2D
-
Created the SLAT2Dgrad
tutorial which compares multimode synthetics created using slat2d96
to Cerveny high frequency asymptotic ray tracing for a
single dipping layer structure. The SH comparison is superb,
while the P-SV comparison suffers from the fact that the ray
theory cannot model the Rayleigh wave. The comparison gives
confidence to the slat2d96 approach.
-
Updated the installation instructions for a Mac computer,
in this case an M2 Macbook Air. The updated page is eqccps.html. In using this
page, please provide comments so that the installation steps
can be improved. Of note was the observations that the
Imagemagick 7.1.1-8 package downloaded from Homebrew could
not handle a PostScript BoundingBox at the end of the file
while the ImageMagick 6.9.11-60 downloaded using MacPorts
worked well.
April 24, 2023
-
Updated VOLV/src/tshwmod96.f
to create the plot file TSHWMOD96.PLT instead
of SHWMOD96.PLT to distinguish the output
-
VOLIII/src/spulse96.f:
corrected the synthetics for laterally varying media, e.g.,
after running slat96. The description in
Keilis-Borok's book is not too clear. Hoperfully this is
correct.
-
The fileid command in gsac
now permits a listing of the magnitude
-
The Makefiles in VOLVI
were not correct since they did not refer to gtrofa.o
for the compiles of surf96, rftn96 and joint96.
-
VOLV/src/refmod96.f: changed
the plot width for reflections.
-
CALPLOT/Utility/calplt.f: added
the -h flag to just show the usage
-
CALPLOT/Utility/genplt.f: changed
one instance of sizey = 0.15 top sizey = 0.12 to agree with
X-axis
-
VOLV/src/f96tosac.f: changes 12 format from
i7.7 to i8.8
March 23, 2023
March 6, 2023
February 28, 2023
February 6, 2023
-
VOLV/src/f96tosac.f - change format statement 12 from i7.7
to i8.8 so it now reads as 12
format(i8.8,'_',i6.6,'_',i6.6,'.',a3)
February 6, 2023
2022
November 7, 2022
-
The current
release is NP330.Nov-08-2022.tgz
-
Recently the version of sac
distributed by IRIS has been has been updated by introducing
support for NVHDR=7 in addition to continuing to support
NVHDR=6. The difference is the appending a double precision
set of timing variables following the waveform section. The
Sac file format is described at http://ds.iris.edu/files/sac-manual/manual/file_format.html
In order to provide support for this new format, SUBS/sacsubc.c
and VOLVIII/src/saccvt.c and VOLVIII/src/saclhdr.c were
updated. In addition asctosac.f, sactoasc.f and
shwsac.f in VOLVIII/src were replaced by asctosac.c,
sactoasc.c and shwsac.c, respectively. NOTE SUBS/sacsubf.f
was not updated because making the changes in FORTRAN is
harder and the use of these FORTRAN subroutines in the
CPS codes does not require the extra precision in the
timing variables.
-
The addition to SUBS/sacsubc.c
and SUBS/sacsubc.h is the procedure getdhv(char
*strcmd,double *dval,int *nerr) and void
setdhv(char *strcmd, double dval, int *nerr). These
are analogous to setfhv and getfhv, but
address the double precision header at the end of the Sac
file for NVHDR=7.
-
The byte-swapping program saccvt
was updated to handle Sac files with NVDR=7. It will reject
a conversion if NVHDR is not equal to either 6 or 7,
and if equal will require that at least one Integer Header
Value be -12345 and that there be no integers <
-99999. The invocation saccvt -I < in.sac >
out.sac will perform a byte swap if required (-I
means intelligent). Without this flag a conversion always
occurs.
-
Thus the upgraded codes are gsac,
saccvt, ssclhdr, asctosac, sactosac and shwsac.
-
A discussion of the codes used to create files
that test the NVHDR=7 value is given in GSACNVHDR.
-
To support a study of P-wave receiver functions above a
subducting slab, the VOLIX codes cprep96 cseis96
and cpulse96 were modified by changing format
statements to support greater source depths and horizontal
offsets. In additikon the ray path computations in cseis96
were changed from single to double precision to support the
greater depths. cseis96 is essentially the Cerveny seis81
code which was developed to support the interpretation of
refraction lines. It the source is placed very deep compared
to the model thickness, then the incident P wavefront
approximates the plane wave assumed for receiver function
studies. To test the codes and to provide examples there is
a tutorial on the
use of Cerveny ray tracing for receiver function analysis.
October 12, 2022
-
July 29, 2022
-
After reviewing a paper, a new option was added to surf96,
rftn96 and joint96. Previously there were
options to fix the P-velocity or to update the P-velocity
using the Vp/Vs data of the initial model (default). In
addition the density was computed from the P velocity.
The update is to use equation (9) of Brocher (2005) to
compute Vp from the updated Vs and to compute density from
equation (1) of that paper. In addition the computation of
density was augmented by rough values of PREM for use when
8.5 < Vp < 12. Reference: Brocher,, T.M.
(2005). Empirical relations between elastic wave speed and
density in the Earth's crust, Bull. Seism.Soc.Am, 95,
2081-2092.
June 9, 2022
June 6, 2022
March 20, 2022
-
To avoid some
problems when using velocity models with meter-kg/m3
instead of kilometer and gm/cm3 statements
such as if(t1 .le.
1.0d-20)cvt(j) = 0.0d+00 were replaced by if(t1 .le. 1.0d-35)cvt(j) = 0.0d+00 in spulse96,
spulse96strain and tpulse96. In addition the
precision checks were changed in sprep96, sdisp96, sregn96, slegn96, tprep96, tdisp96, tregn96 and tlegn96. In addition output
formats for the -TXT and -ASC output of sdpegn96,
sdpder96,
sdpsrf96,
tdpegn96,
tdpder96
and tdpsrf96
so that output
would work for all possible model formats. Thus the
codes are more robust. IT is recommended that the km,
km/s and gm/cm3 be used. The purpose
of the exercise of using different units was to
understand the units of the final synthetics.
-
tregn96 previously worked for a
solid TI model. The inclusion of a fluid layer at
the surface was not implemented correctly. Thus the
eigenfunctions and synthetics were not correct. This
has been fixed.
-
gsac –
modified the routines gsac_env.c, gs
c_plotsp.c,
gsac_psppk.c, gsac_whit.c
and gsac_writesp.c avoid underflow. As an
example, in gsac_plotsp.c
the following change was
made:
From
float tr, ti;
...
temp = sqrt(tr*tr + ti*ti);
To
double tr, ti;
...
temp = (float)sqrt(tr*tr + ti*ti);
The problem was that some spectra that should have been
non-zero, e.g., tr and ti = 1.0e-20, were set to zero because of
the multiplication inside the square root, even thought the
square root is a double.
March 9, 2022
March 6, 2022
-
To avoid
problems with two programs using a file with the same
name, hspec96strain, tspec96strain and hpulse96strain
use the binary file hspec96ss.grn while hspec96
and hpulse96 continue to use the binary file
hspec96.grn. The reason for the difference is
that hspec96 computes the Green’s functions but
the strain codes also compute the partial
derivatives of the Green’s functions with respect to
receiver coordinates.
-
spulse96strain did not correctly define
the moment tensor. Thus output did not agree with that
of hpulse96strain.
-
hspec96, tspec96,
hspec96p and
tspec96p were
slightly changed as follows. If the source is in a
fluid, do not compute an S time through the fluid,
e.g., an S→P time. Change the screen out put to use a
“g” format which is useful for high frequencies and
short distances. Also pass this precision to
subsequent codes.
February 7, 2022
-
sdisp96 - Phase velocity search limits can be
defined using the flags -cmin cmin -cmax cmax or -CMIN cmin -CMAX cmax.
-
hspec96
tspec96 rspec96 tspec96strain hspec96strain – change the format that shows
the frequencies computed so that very high frequencies can
be displayed. The computations were not changed.
-
tspec96strain
hspec96strain - if
the source is in a fluid do not compute an S first arrival
-
hpulse96 – corrected the PEX
PSS PDS etc Green’s functions for
stress/traction in a fluid
-
hpulse96strain – distinguish between -Z (zero phase) and -ZZ (moment tensor
component). Also use first
arrival times from hspec96strain instead of computing
them here.
-
gsac – in the fileid command, there was a
problem in displaying the DEPMIN and DEPMAX
header variables because the initial DE was
interpreted as DEfault. Now to invoke the
default presentation, one must use DEFault.
Because of this all routines permitting a
default reset of parameters must use DEFault!
-
gsac, do_mft
and do_pom: On an older PC running LINUX, there
was a problem in using the X11 Cursor in that there was
a lag in presentation as the cursor moved. This was
obvious for these codes (refr command under gsac) where
a push-button menu was implemented in software. The
modification was to replace the call gcursor(“Arrow”)
by gcursor(“XORArrow”) to make the display
more responsive.
2021
December 11, 2021
September 20, 2021
-
Modified gsac_fileid.c of gsac.
When the command GSAC> fileid list fname
dist az baz concat on format colon was previously
issued, the annotation in the plot window had a lot of
blanks. Not there are not repeated blanks, which
improves the presentation.
-
gsac routine refr had the
display modified to include some white space on the
edges of the trace plot to permit easier use with the
“Zoom” command. Previously it was difficult to pick a
region bear the edges.
September 19, 2021
WVFMT96 1.0 288. 74. -91. 4.15 1.000 0.186E-12 1.000 1.000 0.154E-12 54.5
where the columns are
1 WVFMT96 if created by wvf96.f
WVFMTD96 if created by wvfmtd96
The next four columns describe the best (major) double couple derived from the moment tensor
2 depth - depth of the Greens functions
3 stk - strike of best double couple
4 dip - dip of best double couple
5 rake - rake of best double couple
6 Mw - moment magnitude of best double couple
7 Reduction of Variance: 1.0-total_err/total_sum_sq - raw data 0 zero is best
8 Std Error of fit: sqrt(total_err*tmpsig)
9 xy/sqrt(xx*yy) - cosine of angle between observed and predicted
10 Weighted reduction of variance: 1.0-total_wtd/total_sum_sq_wt
11 Weighted Std error of fit: sqrt(total_wtd*tmpsig)
12 Percent CLVD - 0 means pure double couple
The new output is
WVFMT961 1.0 288. 74. -91. 4.15 1.000 0.186E-12 1.000 1.000 0.154E-12 54.5 -0.1010000E+23 -0.1060000E+23 0.3000003E+21 0.8799998E+22 0.2799999E+22 -0.2190001E+23
The program name in the
first column changes and there are 6 additional columns
1 WVFMT961 if
created by the updated wvf96.f
WVFMTD961 if
created by the updated wvfmtd96
Columns 2 - 12 are the
13 Mxx dyne-cm)
14 Myy (dyne-cm)
15 Mxy (dyne-cm)
16 Mxz (dyne-cm)
17 Myz (dyne-cm)
18 Mzz (dyne-cm)
September 15, 2021
-
A examination of CPS moment
tensor code and documentation was initiated. The results
will be updated documentation in
PROGRAMS.330/DOC/SOURCE.pdf/cps330s.pdf, and new on-line
tutorial for source inversion that focuses on using a
synthetic data set. at mtinfo and fmplot programs. The
lune diagram is discussed in many papers, such as Tape,
W. and Tape, C. (2012). A geometric comparison of
source-type plots for moment tensors, Geophys. J.
Int. 190, 499-510.
-
mtinfo was modified in two was. First the printer
plot in the msg.txt create by
the program now has a representation of the lune to the
right of the beachball plot. The second change is that the
standard output of the program, named here as mtinfo.txt , gives the
lune angles corresponding to the moment tensor at lines 37
and 38. These were created using the command
mtinfo -XX -2.29E+21 -XY -6.34E+20 -XZ 3.53E+21 -YY -1.56E+21 -YZ 2.11E+21 -ZZ -1.35E+22 > mtinfo.txt
-
fmplot was modified to now provide the CALPLOT
graphics file LUNE.PLT in addition to the
previously provided FMPLOT.PLT . The command
fmplot -st -XX -2.29E+21 -XY -6.34E+20 -XZ 3.53E+21 -YY -1.56E+21 -YZ 2.11E+21 -ZZ -1.35E+22 -FMPLMN -P
gives the following plots using the default equal area
projection:
|
FMPLOT.PLT
|
LUNE.PLT
|
|
|
|
Note
that the command syntax gave the moment tensor
elements in units of dyne-cm. This is only
important in the computation of Mw! If other units
are used, the plots will be the same, and text
output will be given in the moment tensor units.
September 4, 2021
The reason for this option is that users may wish to
use another program to plot the model parameters as a function
of depth.
Examples of the plots created are given in SHWMOD96/index.html
August 31, 2021
June 2, 2021
-
These codes have been compiled and tested using
gcc/gfortran 10.2.0 and 11.1. Starting with
gcc/gfortran 9.3.0 the compilers note problems that were
ignored by previous versions. An example is that if two
source files that are part of a larger program and an
#include "local.h" and if the "local.h" had a declaration
such as "int j;", then gcc would note that there were two
global values of "j" and would then stop the compile. The
solution is to remove the declaration "int j;" from the
include file or to make careful if of "local" or "extern"
attributes. The new compilers caught problems
with some of the rdseed and gsac source
files. I also noted that gfortran note the
incorrect use of variables that were not defined.
On Manjaro LINUX, rdseed compiled in PROGRAMS.330/IRIS/rdseedv5.3.slu
required a change in the Makefile in order to access the RPC
code for XDR. After doing
./Setup LINUX6440
edit the PROGRAMS.330/IRIS/rdseedv5.3.slu/Makefile to
modify the INCLUDE and LDFLAGS line as indicated here
[cps@cps-virtualbox rdseedv5.3.slu]$ diff Makefile Makefile.orig.
39c39
< INCLUDE = -I../Include -I/usr/include/tirpc
---
> INCLUDE = -I../Include
46c46
< LDFLAGS = -lm -lc -ltirpc
---
> LDFLAGS = -lm -lc
Now continue the compile with the command
./C &tt; C.txt 2>&1
-
The readline code was
ugraded from readline-5.0 to readline-8.1.
This library is used by gsac.
-
f96tosac was updated to permit additional naming of
the Sac files, The old command line options were
f96tosac [-A] [-B] [-G] [-T] [-?] file_name
file_name Name of file96 file to be converted
If not given, input is stdin
-A SAC alphanumeric file, else binary
-B SAC binary (default)
-G Output names in form DDDDdHHHh.grn (binary)
-T Output names in form DDDDDdHHHh.grn(binary)
-E Output names in form DDDdddHhhh.grn(binary)
-? This online help
-h This online help
The new options permit the file name to also depend on the
receiver depth. This is useful for VSP synthetics. The
options are show below. Note that the output naming may not
be good if a source or receiver depth is negative or if the
field exceeds the available space. FORTRAN is not forgiving.
f96tosac [-A | -B | -G | -T | -E | -FMT ifmt ] [ -? | -h ] file_name
file_name Name of file96 file to be converted
If not given, input is stdin
OUTPUT FILE NAME
-A SAC alphanumeric file, else binary
-B SAC binary (default)
-G (default) Output names in form DDDDdHHHh.grn (binary)
-T Output names in form DDDDDdHHHh.grn(binary)
-E Output names in form DDDdddHhhh.grn(binary)
The format for the name of the binary output attempts to
give information on epicentral distance (km),
source depth (km), and receiver depth(km). The options are
-FMT 1 DDDDDd_HHHh_ZZZz.grn
e.g. 005001_1234_0045.Uz
-FMT 2 DDDDDddd_HHHhhh_ZZZzzz.grn
e.g. 00500123_123456_004578.ZVF
-FMT 3 DDDDDdHHHh.grn (same as -T)
e.g. 0050010041.ZVF
-FMT 4 DDDDdHHHh.grn (same as -G)
e.g. 050010045.ZVF
-FMT 5 DDDdddHhhh.grn (same as -E)
e.g. 5001234578.ZVF
where D is for epicentral distance, H source depth, and
Z receiver depth. The lower case indicates the digits
to the right of the decimal place. The examples above
are for an epicentral distance is 500.123 km, source
depth 123.456 km and receiver depth 4.578 km.
-? This online help
-h This online help
-
New codes are introduced to make synthetic stress, strain,
dilatation and rotation time series. The theory of how this
was accomplished is described in strain.pdf. There is also a
tutorial at ../TUTORIAL/CPSstrain.
The hspec96 and wavenumber integration codes and
the isotropic media modal superposition codes were adapted
to create the new programs tspec96strain, hspec96strain
and hpulse96strain to create strain, stress,
rotation and dilation time series through wave number
integration for a given moment tensor or point force source.
The spulse96strain can create synthetics for
isotropic media using modal superposition. As part of the
upgrade the output files are in Sac binary form rather than
the older file10 format. There are also more options
to the naming of the output files. In addition srotate96
is used to rotate the strains, stresses or rotations to a
different Cartesian coordinate system at the receiver.
The command line options of hspec96strain and are
the same as for hspec96 and tspec96,
respectively. The difference in the codes is that the strain
versions output partial derivatives of the Green's functions
with respect to source depth and epicentral distance.
The command line options are as follow:
USAGE: tspec96 [-H] [-A arg] [-K] [-SU] [-SD] [-SPUP] [-SSUP] [-SPDN] [-SSDN] [-RU] [-RD] [-RPUP] [-RSUP] [-RPDN] [-RSDN] [-?] [-h]
-H (default false) Use Hankel function not Bessel
-A arg (default arg=3.0) value of kr where Hn(kr) replaces
Jn(kr) in integration - only used when -H is used
-K (default Futterman) use Kjartansson Causal Q
The following govern wavefield at source. The default is the entire wavefield
-SU (default whole wavefield) Compute only upgoing wavefield from the source
-SD (default whole wavefield) Compute only downgoing wavefield from the source
-SPUP Include upward P at source
-SSUP Include upward S at source
-SPDN Include downward P at source
-SSDN Include downward S at source
The following govern wavefield at receiver. The default is the entire wavefield
-RD Only downgoing waves at receiver
-RU Only upgoing waves at receiver
-RPUP Include upward P at receiver
-RSUP Include upward S at receiver
-RPDN Include downward P at receiver
-RSDN Include downward S at receiver
-? Display this usage message
-h Display this usage message
USAGE: hspec96 [-H] [-A arg] [-K] [-N][-SU] [-SD] [-SPUP] [-SSUP] [-SPDN] [-SSDN] [-RU] [-RD] [-RPUP] [-RSUP] [-RPDN] [-RSDN] [-?] [-h]
-H (default false) Use Hankel function not Bessel
-A arg (default arg=3.0) value of kr where Hn(kr) replaces
Jn(kr) in integration - only used when -H is used
-K (default Futterman) use Kjartansson Causal Q
-N (default causal) use non-causal Q
The following govern wavefield at source. The default is the entire wavefield
-SU (default whole wavefield) Compute only upgoing wavefield from the source
-SD (default whole wavefield) Compute only downgoing wavefield from the source
-SPUP Include upward P at source
-SSUP Include upward S at source
-SPDN Include downward P at source
-SSDN Include downward S at source
The following govern wavefield at receiver. The default is the entire wavefield
-RD Only downgoing waves at receiver
-RU Only upgoing waves at receiver
-RPUP Include upward P at receiver
-RSUP Include upward S at receiver
-RPDN Include downward P at receiver
-RSDN Include downward S at receiver
-? Display this usage message
-h Display this usage message
hpulse96strain:Help
USAGE:
hpulse96strain -d Distance_File [ -t -o -p -i ] [-a alpha]
-l L [ -D|-V |A] [-F rfile ] [ -m mult] [-STEP|-IMP]
[-STRESS -STRAIN -ROTATE -GRN] [-FUND] [-HIGH] [-Z]
[-LAT] [-2] [ -M mode ] [-LOCK] -FMT ifmt
[-M0 moment ] [-MW mw] [-STK stk -DIP dip -RAKE rake]
[-FX fx -FY fy -FZ fz]
[-XX Mxx ... -ZZ Mzz] [-?] [-h]
TIME FUNCTION SPECIFICATION
-t Triangular pulse of base 2 L dt
-p Parabolic Pulse of base 4 L dt
-p -l 1 recommended
-l L (default 1 )duration control parameter
-o Ohnaka pulse with parameter alpha
-i Dirac Delta function
-a alpha Shape parameter for Ohnaka pulse
-F rfile User supplied pulse
-m mult Multiplier (default 1.0)
-STEP (default)
-IMP
By default the source time function is
steplike. -IMP forces impulse like. -D -IMP is Green s function
OUTPUT FILE NAME
The format for the name of the binary output attempts to
give information on epicentral distance (km),
source depth (km), and receiver depth(km). The options are
-FMT 1 DDDDDd_HHHh_ZZZz.cmp
e.g. 005001_1234_0045.Uz
-FMT 2 DDDDDddd_HHHhhh_ZZZzzz.cmp
e.g. 00500123_123456_004578.Erf
-FMT 3 DDDDDdHHHh.grn(default)
e.g. 0050010041.ZVF
-FMT 4 DDDDdHHHh.grn
e.g. 050010045.Srz
-FMT 5 DDDdddHhhh.grn
e.g. 5001234578.Err
where D is for epicentral distance, H source depth, and
Z receiver depth. The lower case indicates the digits
to the right of the decimal place. The examples above
are for an epicentral distance is 500.123 km, source
depth 123.456 km and receiver depth 4.578 km.
OUTPUT TIMESERIES FOR SOURCE as Ur, Ut, Uz components with strain, stress optional
-D Output is ground displacement (m)
-V Output is ground velocity (default) (m/s)
-A Output is ground acceleration (m/s^2)
-STRESS (default .false. ) output stress for mechanism
units are Pa, with suffix Srr, Srf, Srz, Stt, Sfz, Szz
-STRAIN (default .false. ) output strain for mechanism
with suffix, Err, Erf, Erz, Eff, Efz, Ezz
-ROTATE (default .false. ) output rotation for mechanism
with suffix, Wfz, Wrz, Wrf
-GRN (default false) Output Green;s functions
hpulse96strain -STEP -V -p -l 1 -GRN -FMT 4 is same as
hpulse96 -V -p -l 1 | f96tosac -G . For KM,KM/S,GM/CM^3
model, output will be CM/S for moment of 1.0e+20 dyne-cm
of force of 1.0e+15 dyne
-TEST1 (default .false.) output CPS Green functions ,e.g.,
ZDS RDS ... RHF THF for use with moment tensor codes
and gsac MT command. This is equivalent to
hpulse96 -V -p -l 1 | f96tosac -G if -FMT 4 is used
with hpulse96strain
COMPUTATIONS
-Z (default false) zero phase
SOURCE MECHANISM SPECIFICATION
-DIP dip dip of fault plane
-STK Strike strike of fault plane
-RAKE Rake slip angle on fault plane
-M0 Moment (def=1.0) Seismic moment in units of dyne-cm
-MW mw Moment Magnitude
moment (dyne-cm) from log10 Mom = 16.10 + 1.5 Mw
For strike,dip,rake source mw or Moment must be specified
-EX Explosion
-AZ Az Source to Station Azimuth
-BAZ Baz Station to Source azimuth
-fx FX -fy Fy -fZ fz Point force amplitudes (N,E,down) in dynes
-XX Mxx -YY Myy -ZZ Mzz Moment tensor elements in units of
-XY Mxy -XZ Mxz -YZ Myz dyne-cm
The moment tensor coordinates are typically X = north Y = east and Z = down
If by accident more than one source specification is used,
the hierarchy is Mij > Strike,dip,rake > Explosion > Force
--------------------------------------------------------------
NOTE: The output units are related tot he model specification.
To have the desired units the model must be in KM, KM/S and GM/CM^3
--------------------------------------------------------------
-? Write this help message
-h Write this help message
spulse96strain:Help
USAGE:
spulse96strain -d Distance_File [ -t -o -p -i ] [-a alpha]
-l L [ -D|-V |A] [-F rfile ] [ -m mult] [-STEP|-IMP]
[-STRESS -STRAIN -ROTATE -GRN] [-FUND] [-HIGH] [-Z]
[-LAT] [-2] [ -M mode ] [-LOCK] -FMT ifmt
[-M0 moment ] [-MW mw] [-STK stk -DIP dip -RAKE rake]
[-FX fx -FY fy -FZ fz]
[-XX Mxx ... -ZZ Mzz] [-?] [-h]
TIME FUNCTION SPECIFICATION
-t Triangular pulse of base 2 L dt
-p Parabolic Pulse of base 4 L dt
-p -l 1 recommended
-l L (default 1 )duration control parameter
-o Ohnaka pulse with parameter alpha
-i Dirac Delta function
-a alpha Shape parameter for Ohnaka pulse
-F rfile User supplied pulse
-m mult Multiplier (default 1.0)
-STEP (default)
-IMP
By default the source time function is
steplike. -IMP forces impulse like. -D -IMP is Green s function
OUTPUT FILE NAME
The format for the name of the binary output attempts to
give information on epicentral distance (km),
source depth (km), and receiver depth(km). The options are
-FMT 1 DDDDDd_HHHh_ZZZz.cmp
e.g. 005001_1234_0045.Uz
-FMT 2 DDDDDddd_HHHhhh_ZZZzzz.cmp
e.g. 00500123_123456_004578.Erf
-FMT 3 DDDDDdHHHh.grn(default)
e.g. 0050010041.ZVF
-FMT 4 DDDDdHHHh.grn
e.g. 050010045.Srz
-FMT 5 DDDdddHhhh.grn
e.g. 5001234578.Err
where D is for epicentral distance, H source depth, and
Z receiver depth. The lower case indicates the digits
to the right of the decimal place. The examples above
are for an epicentral distance is 500.123 km, source
depth 123.456 km and receiver depth 4.578 km.
OUTPUT TIMESERIES FOR SOURCE as Ur, Ut, Uz components with strain, stress optional
-D Output is ground displacement (m)
-V Output is ground velocity (default) (m/s)
-A Output is ground acceleration (m/s^2)
-STRESS (default .false. ) output stress for mechanism
units are Pa, with suffix Srr, Srf, Srz, Stt, Sfz, Szz
-STRAIN (default .false. ) output strain for mechanism
with suffix, Err, Erf, Erz, Eff, Efz, Ezz
-ROTATE (default .false. ) output rotation for mechanism
with suffix, Wfz, Wrz, Wrf
-GRN (default false) Output Green;s functions
spulse96strain -STEP -V -p -l 1 -GRN -FMT 4 is same as
spulse96 -V -p -l 1 | f96tosac -G . For KM,KM/S,GM/CM^3
model, output will be CM/S for moment of 1.0e+20 dyne-cm
of force of 1.0e+15 dyne
-TEST1 (default .false.) output CPS Green functions ,e.g.,
ZDS RDS ... RHF THF for use with moment tensor codes
and gsac MT command. This is equivalent to
spulse96 -V -p -l 1 | f96tosac -G if -FMT 4 is used
with strainspulse96
COMPUTATIONS
-d Distance_File {required} Distance control file
This contains one of more lines with following entries
DIST(km) DT(sec) NPTS T0(sec) VRED(km/s)
first time point is T0 + DIST/VRED
VRED=0 means do not use reduced travel time, e.g.
500.0 0.25 512 -23.33 6.0
500.0 0.25 512 60 0.0
both have first sample at travel time of 60s
-LAT (default false) Laterally varying eigenfunctions
-2 (default false) Use double length internally
-M nmode (default all) mode to compute [0=fund,1=1st]
-Z (default false) zero phase triangular/parabolic pulse
-FUND (default all) fundamental modes only
-HIGH (default all) all higher modes only
-LOCK (default false) locked mode used
SOURCE MECHANISM SPECIFICATION
-DIP dip dip of fault plane
-STK Strike strike of fault plane
-RAKE Rake slip angle on fault plane
-M0 Moment (def=1.0) Seismic moment in units of dyne-cm
-MW mw Moment Magnitude
moment (dyne-cm) from log10 Mom = 16.10 + 1.5 Mw
For strike,dip,rake source mw or Moment must be specified
-EX Explosion
-AZ Az Source to Station Azimuth
-BAZ Baz Station to Source azimuth
-fx FX -fy Fy -fZ fz Point force amplitudes (N,E,down) in dynes
-XX Mxx -YY Myy -ZZ Mzz Moment tensor elements in units of
-XY Mxy -XZ Mxz -YZ Myz dyne-cm
The moment tensor coordinates are typically X = north Y = east and Z = down
If by accident more than one source specification is used,
the hierarchy is Mij > Strike,dip,rake > Explosion > Force
--------------------------------------------------------------
NOTE: The output units are related tot he model specification.
To have the desired units the model must be in KM, KM/S and GM/CM^3
--------------------------------------------------------------
-? Write this help message
-h Write this help message
Usage: srotate96 -AZ az [-U|-STRESS|-STRAIN] -FILE prototype
-AZ az (required) angle between r- and x-axes
-FILE prototype (required) identifier for filename
for the example below this could be ../NEW/005000_0100_0010
-U Rotate the Ur Ut Uz from [sh]pulse96strain to Ux Uy Uz
if they exist, e.g., ../NEW/005000_0100_0010.Ur etc
to create 005000_0100_0010_Ux etc in the current directory
-STRAIN Rotate the Err Erf .. Ezz from [sh]pulse96strain to Exx Eyy ..
if they exist, e.g., ../NEW/005000_0100_0010.Err etc
to create 005000_0100_0010_Exx etc in the current directory
-STRESS Rotate the Srr Srf .. Szz from [sh]pulse96strain to Sxx Syy ..
if they exist, e.g., ../NEW/005000_0100_0010.Srr etc
to create 005000_0100_0010_Sxx etc in the current directory
-ROTATE Rotate the Wrf Wrz Wfz from [sh]pulse96strain to Wxy Wxz Wyz
if they exist, e.g., ../NEW/005000_0100_0010.Wrf etc
to create 005000_0100_0010_Wxy etc in the current directory
-h (default false) online help
-
hpulse96 was updated to be more consistent with the
options of hpulse96strain. The changes are evident
in the usage page. More information is provide about units
and the meaning of the output.
hpulse96:Help
USAGE: hpulse96 [ -t -o -p -i ] -a alpha -l L [ -D -V -A] [-F rfile ] [ -m mult] [-STEP|-IMP] [-Z] [-?] [-h]
Output time series in ASCII file96 format
TIME FUNCTION SPECIFICATION
-t Triangular pulse of base 2 L dt
-p Parabolic Pulse of base 4 L dt
-l L (default 1 )duration control parameter
-o Ohnaka pulse with parameter alpha
-i Dirac Delta function
-a alpha Shape parameter for Ohnaka pulse
-F rfile User supplied pulse
-m mult Multiplier (default 1.0)
-Z (default false) zero phase triangular/parabolic pulse
By default the source time function is
-STEP (default) steplike integral of above pulses
-IMP impulse like pulse with unit area
steplike. -IMP forces impulse like. -D -IMP is Green s function
These do not define the shape but rather the
shape of the source pulse. For earthquake
studies use the default steplike
OUTPUT and UNITS
-D Output is ground displacement
-V Output is ground velocity (default)
-A Output is ground acceleration
If the model is km, km/s, gm/cm^3 then the output is
Option units
-A cm/s/s for a moment of 1.0e+20 dyne-cm
or a force of 1.0e+15 dyne
-V cm/s for a moment of 1.0e+20 dyne-cm
or a force of 1.0e+15 dyne
-D cm for a moment of 1.0e+20 dyne-cm
or a force of 1.0e+15 dyne
In a fluid the stress is in Pa for a
moment of 1.0e+16 dyne-cm or force 1.0e+14 dyne
If the model is MKS, e.g, m, m/s, kg/m^3, then
ZRT Greens functions are for moment 1.0 N-m, force
1.0 N with units m, m/s, m/s/s. The P stress are in Pa
-? Write this help message
-h Write this help message
-
mtinfo was corrected
since the M12 element was not printed.
-
fmlpr The compiler did not like
sprintf(m.evtime,"%2.2d:%2.2d:%2.2d:%1.1d",hour,minute,second,millisecond/100);
which was replaced by
sprintf(m.evtime,"%2.2d:%2.2d:%2.2d:%1.1d",hour,minute,second,(int)((millisecond%1000)/100));
-
sdpegn96 was extended to display the results of
acoustic gravity codes which are experimental.
February 1, 2021
-
The use of the GNU Fortran 9.3.0 flagged some
inconsistencies in some of the FORTRAN codes that were
changed. These were mostly in the Lawson and Hanson routines
used in inversion. Thus lines such as
do 1000 i=1,10
do 1000 j=1,10
1000 a(i,j) = 0.0
were replaced by either
do 1000 i=1,10
do 1001 j=1,10
a(i,j) = 0.0
1001 continue
1000 continue
or
do i=1,10
do j=1,10
a(i,j) = 0.0
enddo
enddo
The following were ugraded to avoid compiler warnings:
VOLII/src/sacmat96.f
VOLIII/src/scomb96.f
VOLIII/src/tcomb96.f
VOLIII/src/tdisp96.f
VOLIV/src/modls.f
VOLIV/src/srfdrr96.f
VOLIV/src/srfinv96.f
VOLIV/src/twofft.f
VOLV/src/fbutt96.f
VOLV/src/fmdfit.f
VOLV/src/fmplot.f
VOLV/src/mrs.f
VOLV/src/mtinfo.f
VOLV/src/prfmod96.f
VOLVI/src/rspec96p.f
VOLVII/src/mrs.f
VOLIX/src/cprep96.f
VOLIX/src/cray96.f
VOLIX/src/cseis96.f
VOLX/src/modlt.f
January 31, 2021
-
Updated SUBS/grphsubf.f and SUBS/grphsubc.c
in an attempt to have better linear axis labeling, so that
sequences such as 50 100 150 150 appear rather than 70 140
210. Yet to be done is to modify the logarithmic axis
routines to handle a range such as 200 to 600 in which case
no 102 symbol would be currently plotted. This often
arises with interactive graphics.
2020
October 29, 2020
October 1, 2020
'eml_H.xy' 0 0.01 'CI' 0.05 '1 sig'
where eml_H.xy has entries
2.5000000
3.3192308
0.0000000
0.40308103
2.7000000
3.3750000
0.0000000
0.29140610
2.9000001
3.4560604
0.0000000
0.28769836
The result is shown in the next figure:
This figure was created by concatenating the CALPLOT
files of three invocations of genplt:
#####
# plot the local earthquake Mw vs ML
#####cat > lcmdfil << EOF
'local.xy' 4 0.01 'CI' 0.05 'Local'
EOF
genplt -XLEN 5 -YLEN 5 -X0 2 -Y0 1 -XMIN 1.0 -XMAX 7.5 -YMIN 1.0 -YMAX 7.5 -TX "ML (H)" -TY "Mw" -L lcmdfi
mv GENPLT.PLT LSLU.PLT
#####
# plot the SLU Mw vs ML
#####
cat > ecmdfil << EOF
'eml_H.xy' 0 0.01 'CI' 0.05 '1 sig'
EOF
genplt -XLEN 5 -YLEN 5 -X0 2 -Y0 1 -XMIN 1.0 -XMAX 7.5 -YMIN 1.0 -YMAX 7.5 -TX "ML (H)" -TY "Mw" -E ecmdfil
mv GENPLT.PLT ESLU.PLT
#####
# plot the SMSIM bounds as a polynomial. The first line says use the file SMSIMML.xy, plot in red, and fill
# The second line says use the file SMSIMML.xy, use the color black, and only plot the outline of the polygon
# The result is a shaded red area outlined in black
#####
cat > pcmdfil << EOF
'SMSIMML.xy' 2 1
'SMSIMML.xy' 1 0
EOF
#####
# note that since there was no -LPOS "TR" on the command line, no legend is plotted.
genplt -XLEN 5 -YLEN 5 -X0 2 -Y0 1 -XMIN 1.0 -XMAX 7.5 -YMIN 1.0 -YMAX 7.5 -TX "ML (H)" -TY "Mw" -P pcmdfil
mv GENPLT.PLT SMSIM.PLT
#####
# concatenate placing red on bottom, then results with error bars and then the local
#####
cat SMSIM.PLT ESLU.PLT LSLU.PLT > ALL.PLT
September 16, 2020
May 20, 2020
-
Modified srfpre96 and jntpre96
in VOLIV/srfpre96.f and jntpre96.f to avoid exceeding array
dimensions. Currently there are NM=12000 observations
permitted at NP=512 unique periods. If the data set exceeds
these limits an error message is written, and the code uses
the truncated data set.
-
At the request of a user, sacmft
was modified in VOLII/src/sacmft96.f to introduce the -OE
and -OF options to output the real and imaginary parts of
the analytic filtered trace and the envelope. If the trace
is CCM.BHZ then the output will be of the form
CCM.BHZ_10.0_E, for example where the 10.0 is the period.
This is mostly for those who need to see the results of the
Hilbert transform.
-
genplt in
CALPLOT/Utility/genplt.f now permits a polygon draw or fill
with the -P pcmdfil which consists of lines "filename color
fill/no_fill". Thus one could fill in read and then with a
second line in pcmdfil draw the boundary in black.
-
Added more precision to epoch time stamp in the plotpk
command of gsac.
February 24, 2020
2019
December 30, 2019
-
The current release is NP330.Dec-31-2019.tgz
-
Modified surf96 joint96 rftn96 in VOLV
to introduce a Menu option 51 - Change the maximum depth of
inversion. This also required a change to rftndr96
which computes the receiver function partial derivatives.
There were two objectives here. First to be able to focus on
shallow structure while maintaining the fit to dispersion
and receiver functions that depended on deeper structure and
to make the computation of the RFTN's faster. Note
that the program rftndr96 can be run from the
command to make Sac files of the RFTN and its
derivatives. Fortunately the binary format of control
files had sufficient fields for growth so that binary
control files from previous runs could continue to be used.
The change was prompted to model data sets consisting of
global, regional and local dispersion as well as teleseismic
and local earthquake P-wave receiver functions.
-
The programs rspec96 and rspec96p were
written and placed in PROGRAMS.330/VOLVI/src. These programs
solve the wave propagation program in plane layered
isotropic media using generalized reflection and
transmission matrices, using the development of Pei et al
(2008) [Pei, D. and Louie, J. N. and Pullammanappallil, S.
K. (2008). Improvements on computation of phase velocities
of (Rayleigh) waves based on the generalized R/T coefficient
method, Bull. Seism. Soc. Am. 98, 280-287.] The
methodology was extended to work with SH and fluid layers.
In addition the codes will compute synthetics for a mixed
fluid - solid layer media. The only problem is that the low
frequency static terms may not be correctly computed.
The hspec96 and hspec96p codes will
only permit a fluid layer stack at the top or bottom of the
layered elastic structure but not at both. Some
initial testing indicates that the hspec96 and
hspec96p codes could be used to solve the mixed
fluid - solid problem if the S-wave velocity is set to some
small value, e.g., perhaps 0.001 km/s instead of 0.0 km/s.
A presentation of the theory and test cases are given in RSPEC
The sequence of operations to make synthetics is similar to
that using hspec96:
-
hprep96 -M model -d dfile
hspec96
hpulse96 -V -p -l 1
|
hprep96 -M model -d dfile
rspec96
hpulse96 -V -p -l 1
|
-
Utility/genplt.f - add
-E ecmdfil which plots error bar the data file which has
entries of the form x y dx dy and the bar is plotted
at (x+-dx,y) and (,y+-dy)
-
VOLVI/hudson96.f - Now
computes the Green's functions for a point force
-
VOLIII/sdpsrf96.f - When
plotting error bars with shaded circles, plot circular
outline last for the solid symbol
-
VOLIV/srfpre96.f - Change
dimension on line 445 to avoid abort with a large data set
instead of a graceful truncation
-
VOLIII/sdisp96.f- online
help shows usage of -cmin cmin -cmax cmax arguments
-
VOLIII/sdpder96.f - add
-V verbose flag to output the values as a function of depth
for use with other codes
-
VOLIII/sdpdsp96.f - when
plotting error bars and shaded circles, plot outline last
-
gsac -
-
gsac_in.c and
gsac_conv.c. I incremented the storage for the
temporary arrays used by the interpolation routine, by
slightly changing the arguments to the calloc() and
realloc() calls.
-
gsac_mt.c -
-
gsac_writesp.c - DEPMIN
DEPMAX DEPMEN are correctly set now for the command writesp
-
gsac_conv.c - to remove
number randomness, and as a hack, the calloc and realloc
counts at line 231-232 were incremented by one
-
gsac_in.c - to remove number
randomness, and as a hack, the calloc and realloc counts
at line 129-133 were incremented by one
-
gsac_mt.c - the mt
command assumes that the Green's functions were computed
using a model given in terms of km, km/s and gm/cm3. For
a step-like moment tensor source, the Green's functions
will be cm, cm/s, cm/s/s depending on the spulse/hpulse
argument for a seismic moment of 1.0e+20 dyne-cm. This
command accounts for this scaling to give the output in
m, m/s, m/s/s for the desired seismic moment. When
computing the response for a force, a factor of 1.0e+15
is used. This fix ensures that the output units are
correct when the forces are in dynes.
-
gsac_fileid.c
The FILEID command, which has been there for a long
time, now permits the output of the USER0, USER1, ...,
USER9 header values which the LIST option is invoked. In
addition the filename can be output under the LIST
option FNAME. Finally the output under the LIST
option can be concatenated horizontally rather than the
default vertical. The reason for this change was
the need to have more information. The following
images show the use of these options
|
|
|
|
GSAC> sort up evdp
GSAC> fileid list fname evdp format equals
|
GSAC> sort up evdp
GSAC> fileid list fname evdp format equals
concat on
|
GSAC> color rainbow
GSAC> sort up evdp
GSAC> fileid list fname evdp gcarc format
equals concat on
GSAC> p overlay on
|
-
gsac_fg.c The FG or FUNCGEN command supports
three new pulses: SIN2, SIN4 and PAR2. The functions are
defined:
SIN2:
(2/T) sin^2 ( pi t / T) where T is
duration
SIN4 : sin^4 ( pi t
/ T)
PAR2: Day,
Rimer, Cherry double integral of the spall force
function with duration T. Mathematically this is
defined as
t H(t) + (t-T)
H(t - T) - t2 H(t) - (t -T)2 H(t -
T)
These pulse have the option NORM ON or NORM
OFF.NORM ON will ensure that the area under the pulse,
e.g., the zero frequency level of the spectrum is 1.0.
Thus these pulses as low pass filtered impulses.
The figures below display the pulses, their spectra and
the second derivative of the pulses. The next table
displays the peak pulse amplitude as a function of
duration, T, and whether the NORM is ON or OFF.
|
Peak Amplitude of SIN2, SIN4
and PAR2 source pulses as a function of duration
T
|
|
Pulse
|
NORM OFF
|
NORM ON
|
|
SIN2
|
1
|
2/T
|
|
SIN4
|
1
|
8 / (3 T)
|
|
PAR2
|
(1/8) T2
|
3 / ( 2 T )
|
|
NORM OFF
|
|
|
|
|
|
fg delta 0.02 npts 256 sin2 1.0
fg delta 0.02 npts 256 sin4 1.0
fg delta 0.02 npts 256 par2 1.0
|
Amplitude spectra of traces to the left
|
Second derivative of the traces to the left
|
The following displays the pulses and spectra for NORM
ON. Note that the spectral amplitude at zero
frequency is 1.0.
|
NORM ON
|
|
|
|
|
|
fg delta 0.02 npts 256 sin2 1.0
norm on
fg delta 0.02 npts 256 sin4 1.0 norm on
fg delta 0.02 npts 256 par2 1.0 norm on
|
Amplitude spectra of traces to the
left
|
Second derivative of the traces to the left
|
Spall modeling. The
scripts and discussion of the spall modeling is given in
this link.
February 19, 2019
-
-
The version of rdseed (v5.3) is
old code from IRIS. IRIS currently uses FetchData to
provide waveforms and responses and does not support
rdseed. The modern clang compiler will not
compile rdseed because of many errors in the
code. rdseed is provided here for use with
historical SEED volumes.
2018
November 30, 2018
-
CALPLOT/Utilities/genplt.f
Added 'DO' for line plotting to plot dotted line.
-
VOLII/src/do_pom4.c which
had an improper sequence in reading a string
-
VOLIII/src/sdpegn96.f Added
the flag -ZF to plot the ratio of Z/R which is just
1/ellipticity
-
VOLV/src/fmplot.f Added
-NOSYMMETRIC flag to permit plotting radiation pattern of a
non-symmetric moment tensor. This was part of an exercise to
understand how M13 and M31, for example, contribute to the
symmetric moment tensor.
-
VOLV/src/fmech96.f Because of current interest in
the wavefield in a fluid, This then required a
discussion of the physical units. The comment in the source
code is as follows:
< c 02 JUL 2018 - if the sensor is in the fluid and the source is in the
< c solid, it is possible to compute the pressure wavefield for a
< c given moment tensor in the solid.
< c
< c Assuming that the model file is given in terms of km, km/s and
< c gm/cm^3, then the P?? Green's functions output by the CPS codes`
< c must be multiplied by the factor of 10000 to get the output in
< c units of Pascal (Pa = nt-m). In addition the output is
< c multiplied by -1 to convert from stress (traction) to pressure).
< c
< c This is understood by comparing the vector amplitude of the ground
< c velocity of the P wave in a fluid to PEX Green function for a
< c step source time function.
< c
< c AmpEX = (i omega) 1 PEX = - (i omega) 1
< c ---------- _ -------------- _
< c 4 pi rho Vp^3 R 4 pi Vs^2 R
< c Thus the far-field ZEX and REX will have the same shape as
< c the PEX. Since the Fourier transforms differ by the factor
< c (rho Vp), the peak displacement and peak (-PEX) will differ by
< c the same factor.
< c
< c Model Parameters Unit of source moment ZRT P
< c CGS cm, cm/s, gram dyne-cm cm dyne/cm^2
< c MKS m , m/s , kilogram Nt-m m NT/m^2
< c MIX km, km/s, gram 10^20 dyne-cm cm 10^4 Pa
< c
< c for the last entry, consider AmpEx. If we convert these units to
< c CGS, then everything will be 10^20 time smaller than if we had computed
< c using the MIXed units. So for the MIXed units, fmech96 assumes that the output
< c is for a moment of 10^20 dyne-cm. If the user asks for results for a moment
< c of 10^25 dyne-cm, the Green s functions are multiplied by the factor of 10^5.
< c
< c Likewise the factor (rho Vp) in (gram * km/s) MIXed units will be
< c 10^6 larger in MKS units but the particle velocity is still in cm/s =
< c (0.01 m/s). Multiplying together, this gives a factor of 10^4. So
< c for the MIXed units, when the user asks for synthetics with moment Mo,
< c the output Green s functions for the P?? are multiplied by a factor of
< c (Mo/10^20) (10^4) to get the result in Pascal.
< c
< c
-
VOLVI/src/hspec96.f Use
double precision to specify source/receiver depth in when
converting spherical model to flattened model
-
VOLVI/src/hstat96.f Correct
output flags for the file96 format for the case
-EQEX. The -ALL had worked properly/
-
VOLVII/src/wfdly96.f Corrected
formatting at line 168
-
VOLVIII/gsac.src/gsac: To
permit the use of gsac with exploration data, it is
necessary to be very careful about the use of the lcalda
header value. If lcalda is false, then
the distance and azimuths are not computed or recomputed
based on the values of the stla, stlo, evla and evlo
fields. See the discussion for changes on December 31,
2017, below. Now if lcalda is set to be true,
the distance and azimuth are computed before the write
(w) or write header (wh).
-
CALPLOT/Utility/genplt.f By default axes
are marked with tics and have numbers. Also the x-axis is
horizontal and the y-axis is vertical on the page. I
had the need to plot a function of (depth,value) with depth
downward. I also did not want the amplitude axis
labeled. The command to do this is
genplt -NOTICY -X0 1.9 -XLEN 5.0 -YLEN 7.6 -XMIN -100 -XMAX 100 -YMIN 0 -YMAX 8.0 -TX 'z (km)' -TY '' -C cmdfil -XDOWN
with the resulting plot show on
the left. The plot on the right is without the -XDOWN flag.
To use the -XDOWN feature, compose the plot assuming
assuming X is horizontal. Thus the X-axis is longer than the
Y-axis. The -XDOWN just rotates this figure, and correctly
handles the presentation of the axis notation. The
purpose of this figure was to show normalized eigenfunction
shapes as a function of depth, but plotting tics and
amplitudes would distract from the desire to show the
symmetric and anti-symmetric nature of the eigenfunctions.
-
|
With the -XDOWN flag
|
Without the -XDOWN flag
|
June 5, 2018
-
VOLVIII/gsac.src/gsac_trapezoid.c
The gsac boxcar, triangle and trapezoid
commands did not work properly for dt < 1 sec. The
line in routine gsac_pulconv() was changed from np = 1 +
(int)(t1 + t2 + t3)/dt ; to np = 1 + (int)((t1 +
t2 + t3)/dt) ; The lesson is to be careful with type
casting, e.g., the (int) and parentheses
-
VOLVIII/src/sacspc96.f Added options to plot
dashed lines for the spectra. This was because when plotting
with the gray scale, the lines could not be distinguished
when the user tried different colors. The user can now
specify the type of line and the basic dash length. For
example, a dotted line would be implemented as ^_^_^_
where the ^ indicates a space. Each space and each _ is of
length on one dash length unit. The default behavior
is a solid curve for the spectra, but a dotted, dot-dash or
a dashed curve can be implemented by one of the following
command line arguments.
-LDOT ldot (default none ) dotted line
with length ldot
-LDOTDASH ldotdash (default none ) dash dotted line
with length ldotdash
-LDASH ldash (default none ) dashed line with
length ldash
For the default axes lengths, a value of ldot,
ldotdash or ldash = 0.05 is OK, e.g., -LDOT 0.05
-
VOLVIII/gsac.src/gsac_ch.c, gsac_help.h, and mklhdr.c
The header values were incorrectly named IDHR12 etc instead
of IHDR12. In addition the ch command can now be
used to change the value of IHDR11. Whenever the gsac
sort command is used, it will set the value of IHDR11
to the number of traces stacked. This change permits the use
of sac stacking and then a manual entry of the
number of traces stacked. This is for compatibility with use
of do_mft when ambient noise cross-correlations are
processed.
May 1, 2018
-
VOLVII/src/wvfdly96.f Corrected
format at line 168
-
VOLIII/src/sdpegn96.f Changed
format label for Love output from ARE to ALE and ENERGY to
AL and AR for Love and Rayleigh
-
VOLIII/src/sregn96.f and
slegn96.f The -V (verbose flag) also gives the
Lagrangian/(omega^2 I0). This was done for testing the
correctness of the eigenfunctions for some extreme models. A
perfect solution must have a Lagrangian = 0, but when the
Lagrangian is very large, a relative error may be a better
indicator.
-
VOLIV/src/rftnpv96.f The
-SAC flag creates sac files of observed and predicted
eigenfunctions for use with other plotting routines. The
KSTNM USER0 (gauss alpha parameter) and USER4 (ray parameter
in s/km) are placed in the headers.
-
VOLIV/src/rftnr96.f A
feature was added that only permits the computation of a
P-wave receiver function for the upper part of the model
where the ray parameter is LESS than the P-wave slowness.
This was added to permit computation of receiver functions
from local earthquake data.
-
VOLV/src/refmod96.f Correctly
implements -HS source_depth for computation of reflection
multiples
-
VOLVI/src/hrftn96.f A
feature was added that only permits the computation of a
P-wave receiver function for the upper part of the model
where the ray parameter is LESS than the P-wave slowness.
This was added to permit computation of receiver functions
from local earthquake data.
-
VOLVI/src/hudson96.f Corrected a time shift
computation which attempted to correct for the delay (or
advance) in the tstar pulse. This is not needed for the code
to agree with the hspec96 computations.
April 15, 2018
-
gsac
(VOLVIII/gsac.src/gsac_wh.c and gsac_write.c) In
December, 2017 gsac_ch.c was changed so that the values of
DIST and GCARC are not overwritten when lcalda = false. This
was to permit the sac file to be used for exploration
without out the subterfuge of creating pseudo
latitude/longitude values for the computation of the
distances. The problem introduced because lcalda was not set
to true. By placing the fix in gsac_wh.c and gsac_write.c, A
side effect is that lcalda must be set before the
sequence must not be exactly
ch lcalda true
ch evla 12 evlo 34 stla 45 stlo 56
but can be
ch evla 12 evlo 34 stla 45 stlo 56
ch lcalda true
The wh and write checks this.
-
VOLV/src/time96.f - Added a verbose flag to print
the velocity model for debugging models.
March 1, 2018
February 22, 2018
2017
December 31, 2017
-
VOLV/src/shwmod96.f
- removed extraneous NLAY and NBDY
-
VOLV/src/refmod96.f -
correctly implemented the -HS source_depth for reflection
multiples.
-
VOLVI/src/hrftn96.f -
cleaned usage text for -h command
-
VOLVI/src/hudson96.f -
added -V flag for verbose output
-
VOLVIII/src/sacpol.f -
related the arrow length to the length of the axes
-
VOLVIII/gsac.src/gsac_ch.c -
Previously if the epicenter and station latitudes are
defined, then the distance, azimuth and back azimuth are
calculated. However when working with exploration data, one
may want to enter these coordinates as kilometers instead of
as degrees and to manually specify the distance and not to
compute these values. The behavior is now controlled by the
LCALDA header variable. If LCALDA == TRUE, then it is
assumed that the coordinates are in degrees and the distance
and azimuths are computed for the Earth. Now if LCALDA ==
FALSE, then the EVLA, EVLO and STLA, STLO fields are not
used to compute the distance and azimuth. Instead the user
must compute these separately and enter them with the
ChangeHeader command.
-
VOLVIII/gsac.src/gsac_corr.c - added the LCALDA ==
TRUE to the computation of distances and azimuths for the
following reason. One use of cross-correlation is to obtain
the empirical Green's functions from ambient noise. In this
case it is desired to get the distance between the two
stations. So the EVAL EVLO fields of the original waveforms
are ignored, the coordinates of the master station are
used for the EVLA and EVLO for all traces, and the
distances are computed for the Earth. This is the case for
LCALDA == TRUE. Another use is to
focus on the great circle distance from the earthquake to
each station. In this case we are interested in the
difference in great circle distances between the two
stations. This is accomplished by setting LCALDA = FALSE.
October 16, 2017
-
Because of a request to estimate
phase velocities using two two stations on the same great
circle path, changes were made to do_mft, sacmft96,
and gsac:
-
gsac - the
correlation command now correctly outputs the difference
in epicentral distance between the master trace and the
other traces
-
sacmft96 -
supports the command line flag -P0 ( p zero )
for the computation of phase. Given the CPS
definition of the Fourier transform, the phase velocity
is defined by c = omega * dist / (tphase + N 2 pi ).
-
For interstation Greens
functions from ambient noise, tphase is -phase +
pi/4 + omega*dist/U, where phase is the
instantaneous phase at the maximum of the envelope
and U is the corresponding group velocity. For the
derivation of this refer to ../TUTORIAL/EMPIRICAL_GREEN/MFT.pdf
-
For the
cross-correlation of two stations on the same great
circle path, tphase is -phase + omega*dist/U
-
do_mft - supports the command -P0 ( p
zero ) to activate the interactive phase velocity module
that calls the modified sacmft96
September 12, 2017
#ifdef DEBUG
fprintf(stderr,"ModeSelect: %d pathname: %s\n",ModeSelect, pathname);
sprintf(ostr,"%s -F %s -D disp.d -AUTO",pathname, fname);
#endif
The corrected code removes the ifdef/endif
which caused this important section to be bypassed.
fprintf(stderr,"ModeSelect: %d pathname: %s\n",ModeSelect, pathname);
sprintf(ostr,"%s -F %s -D disp.d -AUTO",pathname, fname);
Thanks to Leticia Duca, Universidad Nacional de La
Plata, Argentina
July 7, 2017
-
Corrected spulse96 for
use with slat2d96. The description in ../TUTORIAL/SLAT2D/index.html
is correct. The implementation in spulse96 was
not. The problem was that there was a geometrical
spreading term sqrt(wvno r) where the wvno must
be the wavenumber at the receiver, and not the average
wavenumber over the path. The documentation is
correct. the example has been rerun.
-
On 29 JUL 2017 corrected sregn96 slegn96 tregn96
tlegn96 to handle the case of a source in the
halfspace. The code splits a layer to place the source at a
layer boundary. However this was not done properly in the
halfspace when the thickness was 0 or less that required to
place the source depth there. The correction involved making
sure the the halfspace thickness (which is of course
infinite) can define a layer to the split.
May 27, 2017
-
Modified the routines ramat.f, jramat.f,
rftndr96.f and modls.f and the program
rftndr96.f to add the command line option -SAC or
-sac to be able to run the program from the command
line to output both the observed and predicted receiver
functions as sac files. The sac files will be of the format
CCM_____2017122212232.5, e.g.,
SSSSSSSS_YYYYMMDDHHMMalp where alp is the Gaussian
filter parameter. The purpose is to permit the user another
way to compare the observed and predicted receiver functions
instead of using the graphics in the joint96 or rftn96
programs. Basically normal operation of the inversion is
performed, the inversion is paused, and then one executes rftndr96
-sac from the command line.
May 1, 2017
-
The current release is NP330.Apr-12-2017.tgz
-
CRITICAL:
The subroutine varsv used by sdisp96,
scomb96, sregn96 did not handle correctly the case of
vertical wavenumber = 0 in the propagator matrices. The
problem arose with the evaluation of sin (ν z )/ ν
as ν→ 0 . The
correct limit of the ratio is z.
-
VOLIII:
-
Subroutine wrdisp.f now
works.
-
sdisp96, scomb96,
sregn96:
-
tdisp96,
tregn96, tcomb96: The problem here was that
whereas the vertical wavenumber ν
for isotropic media is either real or imaginary, it can
also can be complex for some transversely
isotropic media. Credit is due to Prof. S. N.
Bhattacharya of New Delhi for pointing this out
[Bhattacharya, S. N (2017). Rayleigh wave dispersion
equation with real terms in layered transversely
isotropic media, Annals of Geophysics, 60, No 6
(Sup),
doi:
10.4401/ag-7444 ].
This realization required a major code rewrite to handle
the complex vertical wavenumbers. Prof. Bhattacharya
showed that the propagator matrix and its compound
version are always real, however the boundary conditions
for a halfspace may introduce a complex condition. For
surface waves, the period equation can be complex, but
it seems is if the real part has a zero, the complex
number is also a zero for a dispersion value. The
surface wave eigenfunctions and dispersion values are
real though.;
To start the search for dispersion curves in isotropic
media, one can search between 0.9 βmin
≦ c ≦ βmax. For a model for which velocity
increases with depth, the first value would be slightly
less than the classical Rayleigh wave phase velocity in
a halfspace, while the second limit would permit higher
modes. For a general TI media, the following is done:
-
For the minimum value,
the topmost solid layer is used to find the zero of
the Rayleigh-wave period equation at a
frequency of 1 Hz. Since this is treated as a
halfspace, there is no dispersion.
-
For the maximum value, we start at the highest S
velocity, and then search for lower phase velocities
until both the quasi-P and quasi-SV vertical
wavenumbers have a positive real part. There is no
requirement that the imaginary part be
zero. This must be tested more.
Tests of the new code and a
illustration of strange things that can occur in VTI
media.
-
sdpdsp96, sdpegn96,
tdpegn96 tdpsrf96, sdpsrf96: Changed label from sec
to s.
-
VOLII:
-
do_mft: To speed
processing of a lot of waveforms, the AutoFeed
feature has been extended so that much less user
interaction is required - previous processing choices
are remembered. The original sequence, which is still
the processing default, is to pick the Sac file, then
set the units, then set the processing parameters,
and interactively pick the group velocities or
phase velocities, and then return to the first page.
When AutoFeed is selected, then it is assumed
that the units and processing parameters are to be the
same, the next file is then automatically processed.
This speeds the processing by not having to display
three menu pages with the required interaction for many
selection.
-
VOLV:
-
VOLVI:
-
VOLVIII/src
-
VOLVIII/gsac.src:
-
CALPLOT/Utility:
2016
May 8, 2016
-
The current release is
NP330.May-08-2016.tgz
-
New program: mtinfo This program is an
implementation of Jost, M. L., and R. B. Herrmann (1989). A
student's guide to and review of moment tensors, Seism. Res.
Letters 60, 37-57. SRL_60_2_37-57.pdf.
This program decomposes a moment tensor into different
representations, e.g., isotropic, major and minor double
couple, etc. The program is invoked as
mtinfo -h
Usage: mtinfo
-XX Mxx -YY Myy -ZZ Mzz -XY -Mxy -XZ Mxz -YZ Myz
[-dc|-mc|-cc|-vd|-clvd|-a|-crack]
-XX Mxx -YY Myy -ZZ Mzz Moment tensor elements in units of
-XY Mxy -XZ Mxz -YZ Myz dyne-cm
Note -xy Mxy works as well as -yx Mxy
-dc 3 double couples
-mc major couple
-cc double couple and CLVD
-vd 3 vector dipoles
-clvd 3 CLVDs
-crack opening crack
-a all of the above
Note: if none are set, -a is the default
-? This online help
-h This online help
As an example,
mtinfo -XX 0.264E+22 -YY -0.219E+22 -XY -0.195E+21 -XZ 0.188E+21 -YZ 0.100E+22 -ZZ -0.454E+21 > mtinfo.txt
produces the file mtinfo.txt.
April 28, 2016
-
Corrected sac2eloc which
got information from the header by using the call to brsac
in sacsubf.f to a call to brsach. The
problem was that brsac required a data array
dimension that was not used since no data were required.
This caused the program sac2eloc to fail for a file
with many data points. Thanks to George França from Brazil.
-
Fixed error in sacsubf.f n which the character
header was not read using a call to brsach.
March 17, 2016
-
gsac writesp now
supports the options am, ph, rl, im to output the
amplitude and phase spectra and the real and imaginary parts
of the complex spectrum. Previously only the amplitude
spectrum was written. The result is placed in the same
directory as the original file, but with .am, ph, .rl or .im
appended to the name.
-
Corrected the routine errelp in elocate.
The code now follows Flinn, E. A. (1965).
Confidence regions and error determination for seismic event
location, Rev. Geophysics 3, 157-185. Note that the code
does not multiply the error estimate by the F-statistic for
the confidence region or by the t-statistic for the error in
latitude, longitude, depth and origin time.
February 17, 2016
-
Corrected an error in the
FORTRAN routine etoh in SUBS/sacsubf.f and
VOLVIII/src/elocate.f. This routine converts epoch
time (time measured with respect to 1970/01/01 00:00:00.00 )
to a human form of Year, Month, Day, Hour, Minute, Second,
Day Of Year. The routine did not give the proper conversion
for times prior to the reference epoch. This was
discovered by writing MATLAB/Octave routines. The code
snippets for testing the conversion are as follow:
real*8 epoch
character str*40
integer year,month,day,hour,minute,date,doy
real second
year = 1969
month = 01
day = 01
hour = 18
minute = 27
second = 23.408
WRITE(6,*)year,month,day,hour,minute,second
call htoe(year,month,day,hour,minute,second,epoch)
write(6,'(f20.3)')epoch
call etoh(epoch,date,str,doy,
1 year,month,day,hour,minute,second)
WRITE(6,*)year,month,day,hour,minute,second,doy,str
end
1969 1 1 18 27 23.4080009
-31469556.592
1969 1 1 18 27 23.4080009 1 1969/001 1969/01/01 18:27:23.408
#include "csstim.h"
main()
{
double epoch ;
char str[40] ;
int year,month,day,hour,minute,date,doy ;
int sec, msec;
float second ;
year = 1969 ;
month = 01 ;
day = 01 ;
hour = 18 ;
minute = 27 ;
sec = 23;
msec = 408;
second = 23.408 ;
printf("%4.4d %2.2d %2.2d %2.2d %2.2d %2d %3d\n",year,month,day,hour,minute,sec,msec);
htoe2(year,month,day,hour,minute,sec,msec,&epoch);
printf("%20.3f\n",epoch);
etoh(epoch,&year,&doy,&month,&day,&hour,&minute,&sec,&msec);
printf("%4.4d %2.2d %2.2d (%3.3d) %2.2d %2.2d %2.2d %3.3d \n",year,month,day,doy,hour,minute,sec,msec);
}
1969 01 01 18 27 23 408
-31469556.592
1969 01 01 (001) 18 27 23 408
#include "csstime.h"
struct date_time T;
main()
{
double epoch ;
char str[40] ;
int year,month,day,hour,minute,date,doy ;
float second ;
T.year = 1969 ;
T.month = 01 ;
T.day = 01 ;
T.hour = 18 ;
T.minute = 27 ;
T.second = 23.408 ;
printf("%4.4d %2.2d %2.2d %2.2d %2.2d %6.3f\n",T.year,T.month,T.day,T.hour,T.minute,T.second);
mdtodate(&T);
htoe(&T);
printf("%20.3f\n",T.epoch);
etoh(&T);
timeprintstr(&T,str);
printf("%4.4d %2.2d %2.2d %2.2d %2.2d %6.3f %s \n",T.year,T.month,T.day,T.hour,T.minute,T.second,str);
}
1969 01 01 18 27 23.408
-31469556.592
1969 01 01 18 27 23.408 1969001 Jan 1,1969 18:27:23.408
-
Corrected error in computing dT/dh for direct arrivals in elocate.f.
This dT/dh is the change in travel time for a change in
source depth. For the direct arrival for a general layered
structure, there is no simple T(X) relationship. Instead we
must compute an X(p) and T(p) where p is the ray
parameter. Formally
T(p) =
∑iNHiVi(1-p2Vi2)12∑_i^N \frac{H_i}{V_i (1 -
p^2V_i^2)^\frac{1}{2}}
X(p)=∑iHipVi(1-p2Vi2)12X(p) = ∑_i \frac{H_i p V_i}{ ( 1 - p^2 V_i^2) ^ \frac{1}{2} }
When we try to compute a dT/dh for the direct arrival
to a fixed distance, we must note that the ray parameter
changes for the ray to the station. Thus we cannot just
take a partial with respect to the source depth. To resolve this
consider the general case when both the source depth, h, and the
ray parameter, p, both change. Thus to first order
T(p+Δp,h+Δh)=T(p,h)+(∂T/∂p)Δp+(∂T/∂h)Δh
X(p+Δp,h+Δh)=X(p,Δ)+(∂X/∂p)Δp+(∂X/∂h)ΔhX(p+Δp,
h+Δh)
= X(p,Δ) + (∂X/∂p) Δp + (∂X/∂h) Δ
Since we do not want the X to change, the change
in
p is related to the change in h, and thus
(∂T∂h)fixedX=(∂T∂h)fixedp-(∂T∂p)fixedh(∂X∂p)fixedh-1(∂X∂h)fixedp(\frac{∂T}{∂h})_{fixed
X}
= (\frac{∂T}{∂h})_{fixed_p} - (\frac{∂T}{∂p})_{fixed_h } (
\frac{∂X}{∂p})_{fixed_h}^{-1} (\frac{∂X}{∂h})_{fixed_p}
VEL vref offset , where
absolute time of the cut is given by Origin time + Distance/vref
+ offset. One can also use a group slowness with P
pref offset
I have been doing group velocity cuts for moment
tensor inversion by using awk to compute start and end times by
the commands
CUTL=`echo $DIST $VEL $TB | awk '{print $1/$2 -$3}' `
CUTH=`echo $DIST $VEL $TE | awk '{print $1/$2 +$3}' `
and then
CUT o ${CUTL} o ${CUTH}
within gsac to implement something like cut
o DIST/3.3 -30 o DIST/3.3 +70. The other
reason for introducing this option is to be able to look at
segments of empirical Green's functions without having to also
include the noise. An example of the use of this command,
some Green's functions were read and displayed.
|
|
|
Use of cut to select a 30 second window
about a group velocity of 3.5 km/s
|
-
Added new feature to gsac xlim command.
If the origin time and the distance are defined in the sac
header, then the window can be defined using the syntax VEL
vref offset , where absolute time of the cut is given
by Origin time + Distance/vref + offset. One can also
use a group slowness with P pref offset. The
next figure gives and example of the use of this command
with the same traces displayed above. Note the markt on
command was used to add group velocity markers to each plot.
NOTE:
This only works with plot relative and
will not work if the computed beginning of the trace occurs
before the fist sample point.
|
|
|
Use of the xlim command to display a 30
second window about a group velocity of 3.5 km/s
|
2015
September 11, 2015
-
The current release is
NP330.Sep-11-2015.tgz.
-
CALPLOT/Utility/genplt.f - Now
have a -3 option where the data file has 3 columns, x, y,
pen_color
-
VOLIII/src/sdpegn96.f - Now has
-E flag to plot Rayleigh wave ellipticity. Must be called as
-R -E
-
VOLIII/src/sdpspc96.f -
cleaned up the code. If the -O observed -STA sta -COMP
cmp are given on the command line, the observed and
theoretical spectral amplitudes are compared. The
theoretical is attenuated to the distance of the
observation, and then both are correct for geometrical
spreading to the -DIST dist reference
If -O observed is not declared, then the theoretical spectra
is attenuated using the Q model (gamma) and corrected
for geometrical spreading to the distance in -DIST dist.
In all case, the standard output shows all command
lines and gives a tabulation of period spectral amplitude
If one does not want the Q effect, just use
-DIST 1.0 to get the spectra at 1 km for earthquake studies.
The spectral at another distance is found by multiplying by
sqrt ( 1 / desired_distance)
-
VOLVI/src/hudson96.f - fixed
error in subroutine modmerge in which the number of layers
for the source and receiver models were not specified
correctly. Also reworked the logic on modrange for k
< 0 return
-
VOLVIII/src/elocate.f - added -C
flag to output covariance matrix. Also documented and
corrected the determination of the rotation angle for the
confidence ellipse. Note the confidence ellipse is 1 sigma
and the result must be multiplied by sqrt (2 var F(2,2,N-2))
-
VOLII/src/do_mft4.c
VOLII/src/sacamft96.f - fixed XOR problem when
displaying phase velocities. Also added a yellow background
to the phase velocity pick
-
VOLVIII/gsac.src - added new
features
-
Implemented the command map5.
This has the same syntax as map. The two
programs create the shell scripts map5.sh and map.sh,
respectively. The former uses GMT5
(href="http://gmt.soest.hawaii.edu/">
http://gmt.soest.hawaii.edu/) and the latter used
GMT3/4. There is a difference in the syntax of the
codes. Both shell scripts are heavily commented to
permit the user to modify the presentations. The
following shows the output of scripts:
|
GSAC› map kstnm on
GSAC> sh
map.sh
|
GSAC› map5 kstnm on
GSAC> sh
map5.sh
|
|
|
|
The comments in map5.sh indicate how to change
the precision of the latitude/longitude markers. The
size of the PNG file is different since GMT3/4 attempts
to create a BoundingBox based on the plot, while GMT5
does not, and instead relies on the media size.
-
Added Smooth [ON|OFF] option
to psp or plotsp
-
Implemented the command psppk or plotsppk
to permit interactive picking on the spectra. This was
required to plot the amplitude spectrum of instrument
responses and then to select the gain at a given
frequency. This will be used to check the instrument
responses of networks. The syntax is a subset of that
used for the command ppk oe plotpk. One
difference with respect to plotpk is that pick
information is written onto the terminal window for
other use.
The help psppk give
the
following:
SUMMARY:
Interactive spectra pick
PlotSPPK
The options are
AMplitude : Plot amplitude spectrum (default)
PHase : Plot phase spectrum
PErplot [n|OFF] : Plot n spectra per frame (default off)
Overlay [ON|OFF] : Overlay all spectra (default off)
SMooth [ON|OFF] : Apply 5 point smoothing to spectra
(default OFF)
XLIn : X-axis is linear
XLOg : X-axis is logarithmic (default)
YLIn : Y-axis is linear
YLOg : Y-axis is logarithmic (default)
FMIn : Minimum frequency for plot
(default: DF for XLOG 0 for XLIN)
FMAx : Maximum frequency for plot (default: Nyquist)
AMIn : Minimum spectral amplitude to plot (default:
0 for YLIN and 0.0001 Amax for YLOG)
AMAx : Maximum spectral amplitude to plot (default:
maximum)
Default : Do not put up a phase menu, turn off marking
DESCRIPTION:
The cursor responds to the following commands:
- : compress frequency scale by factor of 2, recenter trace
_ : compress frequency scale by factor of 2, recenter trace
+ : expand frequency scale by factor of 2, recenter trace
= : expand frequency scale by factor of 2, recenter trace
(space) : recenter trace
B : move to the previous page of traces
L : give frequency and amplitude of point beneath cursor
N : move to next set of traces
O : return to original trace scaling
Q : end interactive trace picking
X : Define trace window by entering X two times
Z : define frequency range for linear regression to get t*
SEE ALSO
PLOTSP
You will notice that the
commands are a subset of the ppk or plotpk commands.
To use this command, read the traces, fft, and then psppk.
The output of the 'L' command in interactive cursor mode, is the
following:
0.030174 2.8778e+01 W60ABHRS55ABHR.WSTK
where the first column
is the frequency in Hz, the second is the spectral amplitude,
and the last is the name of the file. If the 'overlay' mode is
sued, then the spectral amplitude for all spectra displayed is
given, e.g.,
0.030174 2.8778e+01 W60ABHRS55ABHR.WSTK
0.030174 9.3662e+01 W60ABHTS55ABHT.WSTK
0.030174 2.8613e+02 W60ABHZS55ABHZ.WSTK
An example of the use of the Z-Z option of pkppk is in the following image
This image was made with the shell script commands:
#!/bin/sh
#####
# Alaska event 2015/09/27 Mw=6.3 H=110, recorded
#####
gsac << EOF
#####
# cut about pP
#####
cut a 20 a 40
r *Z
fileid name
background on color 1
color rainbow
fileid name
sort up dist
#p relative
rtr
taper w 0.25
#####
# differentiate ground velocity to get
# acceleration. For large earthquake
# acceleration spectrum is flat, any trend
# is due to tstar
dif
fft
psppk xlin fmin 0 fmax 4 overlay on smooth on
q
EOF
The terminal output is
lnA = a + bf : a=-10.794666 b=-1.466224 t*=0.466714 TPHLB02HHZ SMOOTH YES
lnA = a + bf : a=-11.126728 b=-0.823330 t*=0.262074 TPNVUS00BHZ SMOOTH YES
lnA = a + bf : a=-11.227097 b=-1.524203 t*=0.485169 SHPNN__HHZ SMOOTH YES
lnA = a + bf : a=-11.111622 b=-1.161991 t*=0.369873 GSCCI__BHZ SMOOTH YES
lnA = a + bf : a=-10.466206 b=-1.192656 t*=0.379634 LDFCI__BHZ SMOOTH YES
lnA = a + bf : a=-9.526356 b=-1.321453 t*=0.420632 OK029GS00HHZ SMOOTH YES
lnA = a + bf : a=-9.342464 b=-1.841290 t*=0.586101 WMOKUS00BHZ SMOOTH YES
lnA = a + bf : a=-9.339035 b=-1.845053 t*=0.587299 WMOKUS10BHZ SMOOTH YES
lnA = a + bf : a=-9.279791 b=-1.345738 t*=0.428362 OK025GS00HHZ SMOOTH YES
which gives the
regression line, the t* and information about the trace and
whether it was smoothed.
TO DO: Clean up the output of map/map5 so that event and
stations are not repeated. This will make the scripts and
resulting PostScript smaller in size
2014
November 11, 2014
-
VOLIII/src/sdpspc96.f -
made sure it worked. Also added -AZ az option so that a plot
can be made without a data set
-
VOLIII/src/sdprad96.f - At
request of Rachel Noriega implemented -V to
output theoretical amp(azimuth) radiation pattern
-
VOLII/src/do_pom.c -
checked with gcc -c -Wall
-
VOLIV/src/trftn96.f -
checked with gfortran -c -Wall
-
VOLII/src/do_mft.c - Fixed so
that if distance is negative, e.g., not defined if -12345,
the program will not crash, but will rather flag the entry
with a RED instead of BLUE color in the routine Pick_file()_
-
VOLIV/src/jntpre96.f - Put in a
safety check if the number of dispersion data exceed the
defined limit, currently parameter (NM=12000)
-
VOLIV/src/srfpre96.f - Put in a
safety check if the number of dispersion data exceed the
defined limit, currently parameter (NM=12000)
-
VOLII/src/do_mft1.c - check with
gcc -c -Wall
-
VOLII/src/fmenunod.c - checked
with gcc -c -Wall
-
VOLII/src/do_pom1.c -
checked with gcc -c -Wall
-
VOLII/src/do_pom4.c -
checked with gcc -c -Wall
-
VOLIV/src/rftndr96.f - changed
the screen output to provide sufficient space for the fit.
Previously if the fit was negative, we might have something
like ...T-99.5 . Now there is ...T -99.5. I wanted to be
able to parse the 8'th or 11 columns of output to automate
an external script to eliminate bad RFTN's from the
inversion
-
VOLIV/src/ramat.f - checked with
gfortran -c -Wall
-
VOLVI/src/jamat.f - hacked with
gfortran -c Wall
-
VOLII/src/do_mft4.c -
checked with gcc -c -Wall
-
VOLVIII/gsac.src - Implemented
QDP capability to plots created using the refr
or prs commands at the request of Marcus
Vinicius Lima, Federal University of Pampa, Brazil. This
speeds up the display for very long time series. On many
displays the number of pixels is about 1000 vertically. Thus
trying to plot 30000 points, for example, requires a lot of
computation but does not lead to anything useful on the
display. This option can be invoked using the QDP
command or by clicking on the QDP button under the refr
display.
-
Modified the gsac_prs.c and gsac_refr.c
codes to work correctly when the distances are
negative. We can examine exploration data by setting lcalda
false and then entering negative distances for the
spread. When the ray parameter is now given for a reduced
travel time plot, the plots look better
The images below show the effect
of the change and also the "QDP" button.
|
Normal display showing split profile
|
Split profile after using a
reduction velocity of 6 km/s
|
-
The current release is NP330.Nov-11-2014.tgz.
June 10,2014
-
Corrected the VOLII/src/nfmenu.h
and VOLII/src/fmenunod.c to handle the initialization
of strings correctly. Under MacOS-X, the gcc 4.9 compiler
led to SIGABRT after the phase match filter was used. This
was traced to improper memory allocation for strings in the
linked list. I read Kernighan and Ritchie, The C Programming
Language 2nd Edition, 1988, pages 139-143 and use
strdup(). I had the pointers messed up.
-
The current release is NP330.Jun-11-2014.tgz.
May 24, 2014
-
Modified sacmft96 work around problems with
improper station and component specifications in Sac
files. sacmft96 is called by do_mft for
interactive analysis of group velocities and spectral
amplitudes. The output file of sacmft96, mft96.disp,
is used by do_mft for picking. Since a fscanf
is used to read mft96.disp, the column entries must
be exact and not corrupted.
The Sac KSTNM and KCMPNM header fields are 8
characters long. Usually these are of the form SLM and BHZ,
respectively. Recently there were two examples of Sac files that
had more complicated entries in these header fields, which cause
the KSTNM to be effectively two columns, and this broke the scanf
in do_mft. To see what happened, the command od -c
was used to look at the binary contents of the Sac
file:
od -c COR_RNAK_RNSG.ZZ_p
0000640 307 317 377 377 001 \0 \0 \0 \0 \0 \0 \0 001 \0 \0 \0
0000660 001 \0 \0 \0 \0 \0 \0 \0 R N S G \0 s
0000700 R N A K \0 5 \0 - 1 2 3 4 5
0000720 - 1 2 3 4 5 - 1 2 3 4 5
Note that KSTNM is R N S G \0 s and
KEVNM is R N A K \0 5
Note the Null Characters in KEVNMC
To make everything work, sacmft96 now reformats the
KSTNM and KCMPNM to replace non-printing character by an
underscore, _, and to replace spaces between printing characters
by an underscore. Now mft96_disp contains RNSG_s
for KSTNM. The previous line of mft96.disp looked like
MFT96 R U -1
0.10000 0.43319
0.00967 1.94096 36.9
0.7675E-05 39.531769 -119.850060
39.545757 -119.836517 0 10
0.1074
50.00 COMMENT: RNSG
s -12345 1970 1
0 0
and the new, corrected line, now is
MFT96 R U -1
0.10000 0.43319
0.00967 1.94096 36.9
0.7675E-05 39.531769 -119.850060
39.545757 -119.836517 0 10
0.1074
50.00 COMMENT: RNSG_s
-12345
1970 1 0 0
The change affects the mft96.disp and phv96.disp
files created by sacmft96 as well as the selected
dispersion contained in the XXX.dsp and YYY.phv
files created by do_mft. The number of columns is now
correct. Thanks to J. Bonner and R. Noriega for noticing a
problem and sending me the Sac files.
May 6, 2014
-
Larry Baker, USGS, traced down
the problem in compiling rdseed using gcc4.8 under
MacOS-X that we noticed August 22, 2013. This was in
PROGRAMS.330/IRIS/rdseedv5.3.slu/Utilities/strlst.c.
rdseed now creates Sac files using gcc4.8 and 4.9
compilers on on the current MacOS-X and Ubuntu 14.04.
-
VOLVIII/gsac.src/csstim.h
- fixed the funding on the milliseconds.
-
VOLVIII/src/pltsac.f - fixed
error originally documented 09 AUG 2013
-
VOLVIII/src/sacpol.f - added character sta2*8, comp2*8, cdate2*12. This
is a new program to plot polarizations. A description will
be posted.
-
Many of
the C programs required int main() to return the
status.
-
Programs
changed are given in 20140506/bugfix.txt
-
The current release is
NP330.May-06-2014.tgz
April 28, 2014
at line516
-
/* for(nread=0 ; s[nread] = (char
)getc(fin); nread++, nread < n){
*/
for(nread=0 ; nread < n ; nread++){
s[nread] = (char )getc(fin);
if(s[nread] == '\n'){
break;
}
}
s[nread] = '\0';
-
Corrections were also made
PROGRAMS.330/CALPLOT/src/cmd/plotdriv.c and reframe.c
March 28, 2014
March 13, 2014
-
Added safety checks in the routine sacdatchk().
I created a simple sac file using wsac1() in sacsubc.c.
The file had "-12345" for the station name, component name,
etc. This broke the call to sprintf();
February 7, 2014
-
Fixed minor error in fmplot. When plotting
first motions, fmplot lists the observations and
compares the theoretical P-wave amplitude for that ray to
the input first motion. If there is a sign difference, the
phrase "Inconsistent" is printed. This did not work
correctly for upper hemisphere projections. The
problem only affected the listing and did not affect
the plots.
February 6, 2014
2013
November 8, 2013
-
redodate in VOLI/src
changed. The offset for time computation was changed
from integer seconds to floating point seconds for
more precision
-
PROGRAMS/VOLIV/src:
Changed rftndr96.f output format to be able to display more
precision in sample interval. surf96.f, rfth96.f and
joint96.f have had the density relation modified to be able
to go to about 900 km in depth. srfpre96.f changed to
accomodate the relation between velocity and density to
greater depths.
-
PROGRAMS/VOLV/src/fmlpr.c:
Updated with latest reference to the NDK format.
-
PROGRAMS/VOLIV/src/hspec96.f:
Corrected code at line 452 to with with Solaris f77
compiler
-
PROGRAMS/VOLVIII/gsac.src/gsac_markt.c:
The markt option now shows a 0.3 km/s group speed for
looking at air waves
-
PROGRAMS/VOLX/src/shallow96.f
and shalpr96.f: The density relation was modified to
be consistent with surf96/joint96/rftn96
-
do_mft and sacmft96
were significantly revised for the purpose of being able to
get phase velocities from the interstation Green's functions
obtained from noise cross-correlation. See the tutorial on
this subject. There is no difference in the program output
for group velocity analysis.
-
The current release is NP330.Nov-16-2013.tgz
August 22, 2013
-
Fixed a bug in the
Makefile.OSX40 OSX40-32 in
PROGRAMS.330/IRIS/rdseedv5.3.slu. I had
installed the latest gcc 4.8 compilers into /usr/local/bin
on a new MacBook Air. rdseed seemed to work but did not
create SAC files. In the Makefiles I changed "CC = gcc
" to "CC = /usr/bin gcc"
-
I changed the routines gtrofa()
and gtaofr() in the surface wave, receiver function
inversion codes to add some higher velocities, so that the
codes would work for the Earth to about 900 km
-
The current release is NP330.Aug-22-2013.tgz
August 8, 2013
July 26, 2013
-
Modified PROGRAMS.330/VOLVIII/gsac.src/gsac_plotsub.c
to test if twin == 0.0 to make a cleaner plot. A one
point time series is used by the new programs hstat96
hanal96 to provide the Greens functions for step
source.
-
Finally released the programs to
create the Green's functions for static step change in the
moment tensor for point sources. These programs are used in
the sequence: hprep96, hstat96/hanal96,
fmech96/f96tosac in the same manner for creating
synthetics, e.g., hprep96, hspec96, hpulse96. The
new programs create an output file with the name file96
which can be converted to Sac files using the command cat
file96 | f96tosac -G
-
hsanal96 gives the
static deformation (cm) for a moment 1.0E+20 dyne-cm step
function. This a uses an analytical expression for
halfspace and a wholespace.
-
hstat96 solves the
problem of a source and receiver any where in a stack of
elastic layers by numerical integration of an expression
derived using propagator matrices. The program hsanal96
was written to provide an analytic solution for testing
this wavenumber integration code.
-
f96list reads a file96 waveform file and outputs
the value of the first sample. This was useful for the
static deformation programs. There is no on-line help. This
program is run as
f96list < file96
Units: CM/SEC
Created by None
Comment: ak135Q
R = 964.00000 AZ = 0.0000000
BAZ = 180.00000
ZDD 1.17266125E-12
........................
RHF -9.01416372E-11
THF 9.20795995E-10
July 22, 2013
May 22, 2013
-
Corrected an error in do_pom
(VOLII/src/do_pom.c) in procedure Inquire_file which
to replace the line for(i=0;i< aargc; i++){ by for(i=0;i<=aargc;
i++){. This mistake caused the file list to be
truncated by not showing the last file on the command
line. This error was detected when I attempted to us do_pom
with only two traces.
-
Because I was frustrated using
the gsac * and / commands of the ppk (plotpk) command,
I now permit the mouse scroll wheel to change the
amplitudes. Basically, because of the default
trace scaling, it was difficult to see the true first
arrival and to pick the first motions without re-scaling the
amplitudes. For regional earthquakes, I band pass the
waveform between 1 and 5 Hz using the commands hp c 1 n
2 and lp c 5 n 2. When I have the
arrival suitably placed in the window, using the x x
sequence, I then move the wheel forward to increase the
amplitude and backward to decrease the amplitude. The
source code changes were in the following routines: CALPLOT/src/plotxvig.c
and VOLVIII/gsac.src/gsac_plotpk.c, changing one
line in each file - a trivial change for major new
capability.
-
Modified pltsac to
support an overlay mode ( -O flag ) so overlay
predicted onto observed waveforms. Current SLU moment tensor
solutions use the overlay now to show the fits.
-
f96tosac has a new
command line flag for the naming of the output file ( -E
) which gives the Green function a name in the pattern
DDdddHhhh.grn so that the name can characterize the
distance and depth to the nearest meter. This is useful to
exploration data sets. With this format the file name
can represent distances between 0.000 and 99.999 km, and
source depth between 0.0 and 9.999 km.
-
Luis Rivera noted an error in the computations of first
arrival times in hspec96. This occurred in the
iterative computation for the direct (non-refracted)
arrival, which had the entry
if(iter.lt.20)then
pnew
= 0.999d+00 * pupper
else
Also the command line argument to subroutine
frstar was changed by adding the logical parameter dogeom,
which indicates whether to compute the geometrical
spreading. This is only needed for teleseisms in the time96
and hudson96 codes. The modification was to change
0.999d+00 to 0.99d+00. Changes were made to VOLIII/src/spulse96.f,
VOLVI/src/hspec96.f, VOLVI/src/hudson96.f, VOLV/src/time96.f,
VOLV/src/refmod96.f and VOLV/src/timmod96.f.
-
Modified the output for the -z
and -r options of hrftn96. The
seismograms are now for a unit area P- or SV-pulse incident
in the halfspace. This change does not affect the receiver
function, but permits a comparison of surface amplitude to
incident amplitude. The comparison is actually done in the
frequency domain, where a factor of two free surface effect
is seen for vertically incident rays at zero
frequency.
-

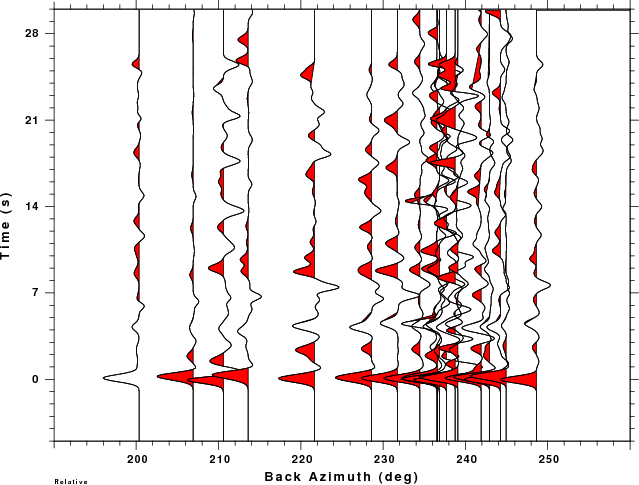

In plotnps, the
initialization 1 setlinecap 1 setlinejoin newpath is
changed to 1 setlinecap 2 setlinejoin newpath. When
plotting a almost horizontal line, the image seems to
consist of filled overlaps half circles which give a jagged
edge. This was observed when the command plotnps
-W10 was given to set the linewidth. It was bad for
-W5 but not for -W50. The 1 setlinejoin indicates
that a round join be used when joining lines. The 0
setlinejoin and 2 setlinejoin indicate miter
and bevel joins, respectively. Hopefully the bevel
join leads to a pleasing image.
-
The current release is
NP330.Sep-20-2012.tgz.
2012
December 15, 2012
-
Corrected compile warnings in VOLIII/src/sdisp96.f,
VOLIII/src/tdisp96.f, VOLIX/src/cprep96.f,
VOLIX/src/cpulse96.f and VOLVIII/src/sacfilt.f
December 10, 2012
-
Modified surf96, rftn96 and joint96.
Justin Ball of the University of Colorado was using the
'negative' layer thickness flag but this choice was not
maintained for the temporary output files. The
'negative' layer thickness is a way to set the reference
level and to control the assignment of depths. It introduced
for the atmosphere - solid earth problem. Rather than define
source and receiver positions with respect to the top of the
model, one can define the reference level as the atmosphere
- solid interface, and, as a consequence, positive values of
source or receiver depths indicate positions in the solid
while negative ones indicate elevations above the
surfece.
While fixing the code, I use the
opportunity to modify the dispersion display program srfphv96
so that plots of Love and Rayleigh dispersion use the same
scales:
-

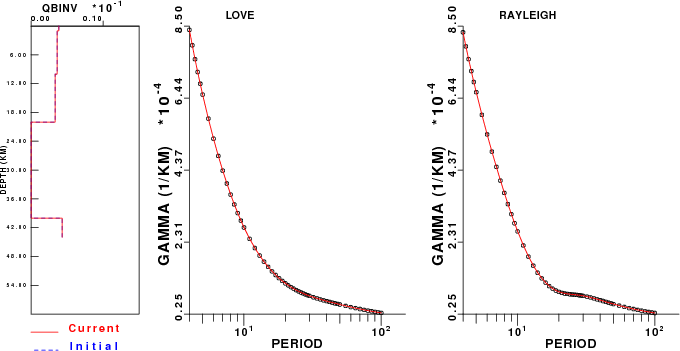

Modified genplt to permit placing a legend within
the plot. This is implemented using two new command line
flags: -L lcmdfil -LPOS position. The command line
syntax now has
-C cmdfil
-A acmdfil
-L lcmdfil
where the following are examples of the different files:
cmdfil:
'HAM.RDD.val' 1 0.01 'CI'
'CUS.RDD.val' 1000 0.01 'CI'
'R41.RDD.val' 1025 0.01 'CI'
'S42.RDD.val' 1050 0.01 'CI'
'S43.RDD.val' 1075 0.01 'CI'
acmdfil:
'HAM.RDD.val' 1 0.01 'CI' 0.04
'CUS.RDD.val' 1000 0.01 'CI' 0.04
'R41.RDD.val' 1025 0.01 'CI' 0.04
'S42.RDD.val' 1050 0.01 'CI' 0.04
'S43.RDD.val' 1075 0.01 'CI' 0.04
cmdfil:
'HAM.RDD.val' 1 0.01 'CI' 0.04 'HAM'
'CUS.RDD.val' 1000 0.01 'CI' 0.04 'CUS'
'R41.RDD.val' 1025 0.01 'CI' 0.04 'R41'
'S42.RDD.val' 1050 0.01 'CI' 0.04 'S42'
'S43.RDD.val' 1075 0.01 'CI' 0.04 'S43'
|
|
The position parameter is a string of the form 'TL', 'ML',
'BL', 'TR', 'MR' or 'BR' for top-left, middle-left,
bottom-left, top-right, middle-right and bottom-right,
respectively. The legends plotted to the right are indented
so that the entire string fits within the image frame.
Note that one can use all three commands. To make the plot
shown, the following command line was used:
genplt -XMIN 100 -XMAX 1000 -YMAX 0.0001 -YMIN 0.000001 -XLOG -YLOG -L cmdfil -TX 'distance (km)' -TY 'Filtered Velocity' -LPOS 'BL'
-
Modified do_mft to be more efficient and added
additional command line flags.
The new set of command line flags are as as follow:
-G The default name of the final dispersion file is StaCmp.dsp.
With this flag, the output dispersion file is the original filename with
.dsp appended, e.g., NMSLMBHZ01.dsp
-T Show the 'Tomo' button
-DMIN dmin only use traces with distances ≥ dmin km
-DMAX dmax only use traces with distances ≤ dmax km
-11MIN 11min only use traces with IHDR11 ≥ 11min
-11MAX llmax only use traces with IHDR11 ≤ 11max
When processing there are several steps that are performed
on different pages: select the trace on page 1, set the
units on page 2, set the multiple filter analysis and
display parameters on page 3 and then select the dispersion
on page 4. Then repeat the entire process for the next
waveform. Normally the parameters on pages 2 and 3 are not
changed. The new Autofeed button permits one to skip
pages 2 and 3. This small change saves a lot of time and
mouse movements when working with large data sets.
The second change was specifically written for use with
inter-station Green's functions computed by
cross-correlating ground noise. Since gsac is used,
the stack function saves the number of traces in the
ihdr11 variable. The command line of do_mft
can be used to use only traces with a range of ihdr11
values. The command line can also select distance ranges
now, a feature of use for earthquake data. Finally a new -T
flag introduces a Tomo button.
The Tomo button executes the script MFTDOOVERLAY
that is in the users PATH. It is currently used to determine
the tomographically predicted dispersion between the station
and epicenter for earthquakes or two stations for
cross-correlation, and then to overlay this onto the MFT
image. The two figures show the buttons and the predicted
dispersion.
The purpose of making this
overlay is to assist in determining the proper period range
for dispersion. For earthquake data, the spectral shape is
often used as a guide, but the comparison may be useful.
Another obtain is to overlay model predicted dispersion
curves created from the -S flag of sdpegn96. The
script MFTDOOVERLAY
can be programmed to do a lot of things. For example a
combination of gsacGMT can be used to create the
file map.eps which can be viewed using gv or
other PostScript view:
Tomography results and display scrips will be provided
shortly.
-
The current release is NP330.Dec-10-2012.tgz.
October 22, 2012
-
Corrected an error in the gsac
interpolation routine in gsac_in.c. The
problem was a spurious value for the last point. Shaoqian Hu
fixed the error. The following image compares the original
trace in red to the interpolated trace in blue. In order to
make the presentation, the observed trace was read using a
cut, and the cut version saved. The cut trace was then
interpolated and saved. Finally both traces were red using
the command cuterr fillz and cut with wider
limits to focus on the behavior at the end. Thus is why both
traces are zero at the end. The problem has long been
noticed in waveform plots from the moment tensor inversion -
however since only one point was involved, the moment tensor
inversion results do not change.
-
|
Original code
|
Corrected code
|
|
|
|
September 20, 2012
-
Upgraded the distributed IRIS
program rdseed from 5.2 to 5.3. In order
to support the CPS architectures, e.g., CYGWIN (Windows),
MacOS-X, LINUX and Solaris, changes were made to these
codes. The changes are given in the links in this
section.Only minor changes are made. The comments in the Sac
pole-zero files are a super set of rdseedv5.3 and
rdseedv5.0.slu.
-
Main/output_resp.c
- modify to permit extra output for use in seismic
network QC
-
Main/output_sac.c -
modified comments in Sac pole-zero file
-
Main/summary.c -
changed the call to fabsl to fabs since
there was no fabsl in CYGWIN and since the use
of the code only required double and not long
double.
-
Parsers/parse_50.c -
eliminate non-printing characters in the site name
-
Utilities/log_errors.c -
add #include <string.h>
-
Detailed changes
-
Modified the gsac ppk
to recognize the use of the 'm' key as the same as the '*'
key to make the trace amplitudes larger.
-
The current release is NP330.Sep-20-2012.tgz.
September 9, 2012
-
The include file calplot.h now
has prototypes for the routines void gcont(float x,
float y);
void gmove(float x, float y); (Thanks to Shaoqian Hu)
-
Fixed the bsort and dbsort
subroutines in sprep96.f, sdisp96.f, tprep96.f,
tdisp96.f, scomb96.f and tcomb96.f. The
problem was that the bsort routine sorts and array, and then
keeps only the unique values. Thus the length of the array
returned can be smaller than the initial array. The
last line of the subroutine was written as n=n-m instead
of nn=n-m. (Thanks to Ruoshan at USTC)
-
The current release is NP330.Sep-09-2012.tgz.
August 6, 2012
July 26, 2012
-
hpulse96 now uses list
direction IO instead of formatted IO for user defined source
time function
-
The program srfker96 is
now part of the package. This program reads the temporary
files from surf96 to list all partial derivatives as
a function of depth. A tutorial on the use of this
program is available at the tutorial web page ../TUTORIAL/SWKERNELS/index.html
.
-
After creating the above
tutorial, I realized that I cannot compute the partials of
the anelastic attenuation coefficient γ with respect
to changes in P- and S-wave velocity or layer thickness.
These partials created in subroutine
PROGRAMS.330/VOLIV/src/jsamat.f now set dgdv = 0
for each layer.
-
The current distribution is NP330.Jul-26-2012.tgz
April 9, 2012
-
Upgraded the distributed IRIS
program rdseed from 5.0 to 5.2. In order
to support the CPS architectures, e.g., CYGWIN (Windows),
MacOS-X, LINUX and Solaris, changes were made to these
codes. The changes are given in the links in this
section.Only minor changes are made. The comments in the Sac
pole-zero files are a super-set of rdseedv5.2 and
rdseedv5.0.slu.
-
Main/output_resp.c
- modify to permit extra output for use in seismic
network QC
-
Main/output_sac.c -
modified comments in Sac pole-zero file
-
Main/summary.c -
changed the call to fabsl to fabs since
there was no fabsl in CYGWIN and since the use
of the code only required double and not long
double.
-
Parsers/parse_50.c -
eliminate non-printing characters in the site name
-
Utilities/log_errors.c -
add #include <string.h>
-
Detailed changes
March 26, 2012
-
Changes to gsac:
-
outcsv command adds a
column header which now indicates Freq(Hz) for
spectral files in addition to the previous
Time(sec) for time series.
-
prs (plotrecordsection)
permits annotation using the title command.
However this is not perfect since the location of a
title at the top of the page conflicts with the annotate
option of prs and the location on the left
conflicts with the y-axis label
-
prs command now
behaves better with the use of the prs title
title_text command to supersede the normal axis
label. The annotation is required since the Sac header
only permits a few of the variables to have associated
text strings, and if the USER1 happens to be set for a
user defined Angle, one can arrange the record section
accordingly with the command prs user1 title "Angle
(deg)"
-
tregn96, tdisp96, sregn96,
scomb96, tcomb96: cleaned up compiler warnings
-
hspec96: Fixed a problem
with flagging a receiver position is a fluid to compute the
pressure fields in the fluid for the different sources. This
only appeared with an atmosphere model was used which
required refdep to be other than 0.0
-
tspec96: Fixed a problem with flagging a receiver
position is a fluid to compute the pressure fields in the
fluid for the different sources. This only appeared with an
atmosphere model was used which required refdep to
be other than 0.0. However I have to check the travel times
for a fluid.
February 8, 2012
-
Modified genplt to have
additional plotting controls on the size for the symbol
shape. This means that the other program tgenplt is
deprecated. The syntax of the current program and an example
of its use is given in the line GENPLT/nindex.html. genplt
will run as before. The new capabilities are invoked with
the -A acmdfil command-line option.
-
The current distribution of Computer Programs in Seismology
is now NP330.Feb-09-2012.tgz
January 14, 2012
2011
November 23, 2011
-
Fixed an error in the synchronize
command of gsac. The problem arose when reading
just the headers and then synchronizing. The code has
been fixed. The current version of gsac is now V1.1.44
21 NOV 2011.
-
The command line parsing of the
program fmplot was rewritten,
-
The current distribution of Computer Programs in Seismology
is now NP330.Dec-01-2011.tgz
November 1, 2011
-
In response to user requests the
following changes were made to gsac. The current
version of gsac is now V1.1.43 31 OCT 2011.
-
At the request of H. Benz, gsac
now sets a header value corresponding to the time of the
maximum (depmax) and minimum (depmin)
amplitudes. The previously unused float/real
header values in the 70 position real header, FHDR65 and
FHDR66, are now called TIMMAX, TIMMIN, respectively.
This request was made to use the times of the maximum
and minimum points of a trace in external
programs.
-
These other codes were
changed to reflect these new parameters: scmxmn
routine in SUBC/sacsubc.c, SUBS/sacsubc.h,
SUBS/sacsubf.f . The programs that use these
general Sac I/O routines were re-compiled.
-
A new command, ricker,
was added to gsac. This permits one to
convolve a time series with a Ricker wavelet of a given
frequency. This was implemented because of difficulties
with the spulse96 -f wavelet_file and hpulse96
-f wavelet_file implementation.
-
The current use of Sac header
variables by Computer Programs in Seismology is as
follows:
-
USER0 - Gaussian filter
parameter, alpha, used in saciterd, saciterdc,
rftn96 and joint96
-
USER1 - minimum period of
filter. This is introduced so that users do not falsely
accept dispersion values outside the bandpass of a
filter
-
USER2 - maximum period of
filter.
-
USER4 - ray parameter for joint96
and rftn96. Set from command line by saciterd
and saciterdc.
-
USER5 - percent fit value.
Appears in pltsac, wvfgrd96, wvfmt96, wvfmtd96,
hrftn96, trftn96, joint96 and rftn96.
-
USER9 - time shift for
waveform fit. Used by pltsac and set by wvfgrd96,
wvfmt96 and wvfmtd96.
-
TIMMAX - offset with respect
to reference time indicating time of trace maximum
-
TIMMIN - offset with respect
to reference time indicating time of trace minimum
-
IHDR20 - set by gsac
as part of the ppk qc command to indicate
whether a trace passed QC. I obtain this value
from a sac file in a shell script with a call to saclhdr,
which is then use in an awk script.
-
The current version of Computer Programs in Seismology is NP330.Nov-01-2011.tgz.
October 20, 2011
-
C. Buffoni noted a problem with the presentation shaded
area seismic trace plots in PostScript using the command plotnps.
It took a while to track this down, but the problem was
repaired. In addition the shaded area plot correctly for the
command plotxvig -R, although this would rarely be
used. In addition plotgif -R works correctly.
|
OLD (problem)
|
NEW (Repaired)
|
|
|
|
-
Modified the CALPLOT functions pend()
and gend() to reset the pen width to the default 0,
and the pen to 1 (black). This assists merging files.
-
NOTE:
The S-wave receiver function, e.g., Z/R, computed by hrftn96
is not stable. This may be due to the problem of
deconvolving with a wavelet that is not minimum phase. This
is a major issue that is deferred to a future update.
-
The current version of Computer Programs in Seismology is NP330.Oct-27-2011.tgz.
October 13, 2011
-
The mt (moment tensor)
command of gsac now supports the specification of
the moment tensor source on the command line, e.g.,
-
The current version of gsac is V1.1.42 13 OCT 2011
September 23, 2011
-
Major change in gsac:
-
refr command - filters are
2-pole 1 pass and not 2-pole 2 pass - thus they are
causal!!
-
plot command - for many
traces displayed sequentially using the perplot command
the y/n/b query is now y/n/b/q so that one can quit
-
mt command - fixed code so
that the t0 and t1 arrival times of SV and SH are
correctly read and then saved in the headers. This arose
during conversion of horizontals to N E
-
prs command - do not
annotate trace if KSTNM is -12345 and add LAST kolor
FIRST color to permit different colors. I wanted to
compared one observed trace to many predicted traces
using different colors for observed and predicted.
-
csstime.c - MAJOR change. I
used an incorrect rounding when going from epoch time to
integers NZYEAR NZJDAY NZHOUR NZMIN NZSEC and NZMSEC.
This inadvertently messed up the seconds by one unit.
-
Minor changes to sacmat96,
sepegn96.
-
Changes to the VOLIV
surface-wave inversion programs to permit computation of
du/da and dc/da, partials with respect to P-wave velocity.
these are not used in the surface-wave of joint inversion;
the changes were made for the design of a new inversion of
P, S first-arrivals and dispersion for shallow exploration
-
hrftn96 in VOLVI changed
the sign of the Z and R synthetics for SV incident to agree
with expected particle motion.
-
In VOLVII, wvfmt96,
wvfmtd96 sets USER5 to the percentage of fit,
e.g., 100 * correlation coefficient squared
-
In VOLVIII/src changed
output format for the file elocate.sum in elocate
-
In VOLVII/src introduced new
program saciterdc which is C version of the FORTRAN
saciterd for speed, and easy transliteration of routines to
java. The -Q flag suppresses output at each iteration
-
in SUBS put in an error
check for the routine bwsac in the file sacsubc.c
2010
October 24, 2010
-
Fixed bugs in the interpolate
function of gsac which affected the convolve
command. The current version of gsac is GSAC -
Computer Programs in Seismology [V1.1.39 24 OCT 2010].
-
The current release of Computer Programs in Seismology is
NP330.Oct-24-2010.tgz.
-
The current release of Computer
Programs in Seismology is NP330.Oct-12-2010.tgz
-
Corrected Makefiles for OSX in
VOLVIII/gsac.src/ so that arrow keys work for gsac
on OSX
-
Modified the Setup script so that the help reads:
Usage: Setup SOL WIN32 SOL-EGCS LINUX LINUX64 CYGWIN OSX
SOL SUN Solaris Compilers
SOL-GNU SUN Solaris with gcc/g77 compilers
CYGWIN CYGWIN 98/NT/2K/XP gcc/g77 Compilers
CYGWIN40 CYGWIN 98/NT/2K/XP gcc/gfortran Compilers
LINUX40 Linux with gcc/gfortran compilers
LINUX6440 Linux 64 bit with gcc/gfortran compilers
OSX40 Apple with gcc/gfortran compilers
OSX40-32 Apple with 32-bit gcc/gfortran compilers
Older systems - not modern
LINUX Linux with gcc/g77 compilers
LINUX64 Linux 64 bit with gcc/g77 compilers
OSX Apple with gcc/g77 compilers
The purpose of the OSX40-32
flag is to force a 32 bit compile. This is useful on some
Mac's where the gfortran and gcc compilers such that one is
32 bit and the other 64 bit
-
Fixed hspec96 by adding a -ZSRC zsrc and -ZREC
zerc flag that will define the maximum depth of the
source/receiver location models to patch onto the
teleseismic model. Before this change the halfspace
was replaced by a 1 km thick layer, which messed up the
resulting model. Creating a merged model is not simple
scientifically irrespective of the programming error.
-
Upgraded the distributed IRIS programs evalresp from
version 3.2.40 to 3.3.3 and rdseed from 4.8 to
5.0. In order to support the CPS architectures, e.g.,
CYGWIN (Windows), MacOS-X, LINUX and Solaris, changes were
made to these codes. The changes are given in the links in
this section. This upgrade was required in order to continue
to use the most recent SEED volumes.
The two programs are installed in PROGRAMS.330/bin
with the executable names evalresp and rdseed.
The IRIS distribution found in PROGRAMS.330/IRIS/rdseedv5.0
provides the executables rdseed.linux (64
bit), rdseed.MAC.x86 (64 bit), rdseed.powerpc,
rdseed.sparc (64 bit), and rdseed.sun.x86 (64
bit). If you wish to use these programs, you must
install them in your system and adjust the path to find
them.
-
evalresp - The
SLU version has the fixes suggested by Eric J. Haug of
SLU in May, 2008 to handle continuation for FIRST
with a large number of coefficients. Basically we need
to get past the tendency of some SEED writers to put the
following phase in the RESP file "No Abbreviation
Referenced" for Response in units lookup and Response
out units lookup. This is a problem with the CMG-5TD
accelerometer which has a very, very FIR stage.
Detailed changes.
-
rdseed - Several
changes were made.
-
Another change relates to the strupr
routine. Since this is actually provided by
some libraries, we must avoid a double
definition. By making this global change the rdseed
version of this is preserved and there is no
conflict with other definitions. Thus all instances
of strupr are changed to Strupr and
a definition is placed in Include/rdseed.h. Changes
were made in Decoders/process_data.c,
Decoders/process_event_requests.c, Main/ah_resp.c,
Main/output_css.c, Main/rdseed.c and
Main/summary.c.
-
Utilities/alloc_linklist_element.c
- malloc wants a size_t
cast. This is changed from an int
-
Utilities/get_date.c
- Change #include <time.h> add #include
<sys/time.h> which is required to define
gettimeofday() [ LINUX, Solaris. CYGWIN]
-
Ah/makefile -
remove CC=gcc since not all compilers use gcc
- note that CC is defined in the main Makefile
-
Decoders/makefile
- remove CC=gcc since not all compilers use
gcc - note that CC is defined in the main
Makefile
-
Parsers/makefile
- remove CC=gcc since not all compilers use
gcc - note that CC is defined in the main
Makefile
-
Printers/makefile
- remove CC=gcc since not all compilers use
gcc - note that CC is defined in the main
Makefile
-
Snoop/makefile -
remove CC=gcc since not all compilers use gcc
- note that CC is defined in the main
Makefile
-
Utilities/makefile
- remove CC=gcc since not all compilers use
gcc - note that CC is defined in the main
Makefile
-
Parsers/parse_50.c -
get rid of non-printing characters in the output
-
Main/output_sac.c -
Place comments into the pole-zero file giving
information about the station, network, date, etc.
rdseedv.5.0 incorporates this. The code changes add
some additional information about the instrument and
also test the output strings.
-
Main/output_resp.c - Send information about
the network to stderr, e.g., station, network,
component, location, on_date, off_date, latitude,
longitude, elevation, response file : rdseed -f
seed_volume -R > out 2>&1 which
using the sh or bash shells.
(Sample stderr
output)
-
Updated the manual entry
in Main/rdseed.1 to make the command line
flags more complete on the first page. The pdf
version of this document is in PROGRAMS.330/DOC/IRIS.pdf
where you will find evalresp.pdf, rdseed.pdf
and SEEDManual_V2.4.pdf (no change from
November 17, 2007)
-
Compiler warnings: : Significant warnings
appear using gcc -c -g -Wall instead of the
normal gcc -c in the makefiles. Most of the
warnings are due to the fact that the current rdseed
is not written in ANSI C but rather in the original
Kernighan and Ritchie style. Someone else should
clean up this code.
-
Detailed changes
-
The modified rdseed
was successfully compiled on both 32 and 64 bit
Intel LINUX machines using the GNU compilers, on a
SPARC Solaris machine using SUN compilers, on an
Intel Windows machine under the CYGWIN environment,
and under MacOX-X using the GNU compilers. The only
compiler warnings were the following:
-
cc -I../Include -c -g -c -o decode_steim.o
decode_steim.c
decode_steim.c: In function `decode_steim':
decode_steim.c:231: warning: integer overflow in expression
decode_steim.c:231: warning: integer overflow in expression
-
on just the 64-bit LINUX compiler (note that the
-w32 compiler flag was not used since the
change to Include/sac.h makes this unnecessary)
there are a number of errors associated with printf
formats (Output
of gcc -c).
-
Modified gsac to implement the convolve command.
This required significant effort because positioning and
time delays are a problem. The syntax of the new command
differs from that of Sac and is:
Con Z [B|O|A|T0|T1|T2|T3|T4|T5|T6|T7|T8|T9] File external_sac_file [Suffix suffix]
One marker must be set to define the zero time of the
pulse in order to prevent incorrect delays. The following
example creates an impulse, sets "O" to the start of the
impulse, convolves with the internal function "Triangle" and
then uses the "Convolve" command to do the same:
gsac << EOF
#####
# define the filter
#####
fg imp delta 0.1 npts 256
w imp.sac
r imp.sac
# set the o marker
ch o 0
w
triangle w 1.0
w tr.sac
#####
# define the impulse with a different sample rate
#####
fg imp delta 0.05 npts 512
w nimp.sac
r nimp.sac
conv z o f tr.sac s ".con"
w
q
EOF
A comparison of the files
tr.sac and nimp.sac.con shows that they are the same
and have the same spectral amplitudes, except at high
frequency because of the different sample rates.
-
The current version of gsac is now V1.1.38 30 SEP
2010.
September 20, 2010
September 17, 2010
-
Introduced the simple plotting
program genplt
-
Added a new program wvfdly96
for use in the source inversion. This program interprets the
time shift used for regional moment tensor inversion to a
change in origin time and location. This was necessary when
analyzing events whose locations are poorly constrained
August 30, 2010
-
Surface-wave programs in
VOLIII/src were rewritten: sregn96, spulse96,
slegn96, sdpegn96, sdpdsp96, slat2d96,
sdisp96, sdpder96 and sdpsrf96. The
purpose for the rewrite was to align the code with the
development in the class notes
-
Added new programs to VOLIII/src for transverse-isotropic
(TI) media. The new programs provide TI synthetics and
phase-velocity partials with respect to the four vertical
and horizontal P- and S-wave velocities and the parameter η
= F/(A - 2L). These new programs are called tcomb96,
tdpder96, tdpsrf96, tprep96,
tsregn96, tdisp96,
tdpegn96, tlegn96, tpulse96
and tregn96. The programs work together in
the same manner as the original codes for isotropic models:
tprep96 -M model.TI -L -R -NMOD 500 -d dfile -HS 10 -HR 0
tdisp96
tlegn96
tregn96
tpulse96 -V -p -l 4 -d dfile > tifile96
fprof96 -A < tifile96
Of course isotropic models can be used with these
programs, also though the computations will take longer than
for the corresponding isotropic codes.
August 20, 2010
-
Modified gsac in the
following manner. The prs (plotrecordsection) command
supports the use of the MAG field as an axis. The sort
command now permits a sort on MAG.
-
The current version of gsac is now V1.1.37 20 AUG
2010.
July 15, 2010
-
The mt (moment tensor)
command in gsac was modified to permit point forces
with the command syntax FN fn FE fe FD fd where the
force(units of dynes) is described in the north, east and
down directions, respectively. The output will be in
meters. The current version of gsac is now
V1.1.36 15 JUL 2010
-
For the purposes of documenting the menus, gsac
accepts a ~ interactive input under the ppk
and refr commands. This will create a unique
CALPLOT graphics file with name DUMPxxx.PLT which will show
the menu buttons and the waveforms.
June 17, 2010
-
The mt (moment tensor) command in gsac was
modified to permit an explosion source, mt iso mw 5.0
FILE fileproto. In addition the generation of separate
Z, R, T, N or E components can also the new syntax mt TO
UZ or in general one of UR, UZ, UT, UN or UE in
place of the previous R, Z, T, N or E, respectively.
The current version of gsac is now V1.1.33 17 JUN
2010.
June 14, 2010
June 6, 2010
-
Added a new command to gsac.
The shift command moves the position of a trace
in time, adjusting the A T0 ... T9 markers. The syntax
is shift Fixed Amount. If amount is positive
the trace is plotted later in absolute time. This
command was introduced to support finite fault modeling,
which requires that sub-faults fire a later times as the
rupture front excites the sub-fault. I
previously manipulated the O (origin time marker) and did
some fancy cutting that was not intuitively obvious. The
current version of gsac is now 1.30 06 JUN 2010.
-
Modified output of elocate to provide a command
line that can be used with gsac or sac2000. The line
appears as ch o gmt YEAR DOY HR MN SEC MSEC
May 20, 2010
-
Modified iputmod.f in
PROGRAMS.330/SUBS. Created igetmod.c, iputmod.c,
imodel.h to implement 'getmod', 'putmod' in C. The igetmod.c
source also includes a routine getdval which
search the model to get the model parameters at a given
depth within the model.
-
Added a conversion to ZNE in the gsac
mt command in order to make Z N
and E components. Previously we could make Z R and T
components. I needed this for short distance finite fault
simulation for which the back azimuth to each sub-fault
can change. This makes the current version number of gsac
[V1.1.30 19 MAY 2010]
-
Added rot3
to zne to
the gsac rot3 command.
-
At the suggestion of Carol Bryan, fixed a bug in
the deviatoric constraint in the program wvfmtd96
in PROGRAMS.330/VOLVII/src/wvfmtd96.f
-
pltsac - added -TMIN fmin -TMAX tmax
command line arguments to
make better plots.
-
shwmod96 - added dashed line option - but
be careful if used with automatic -K -1 command line flag.
-
sdpegn96 - added -NOBLACK command line
flat to prevent black outline around the observed dispersion
for compatibility with sdpdsp96.
April 7, 2010
-
Slight modifications to plotnps. When I implemented
the background fill to implement the -I flag, I also had a
default forced white background when the -I flat was not
invoked. While this was the desired effect for converting an
EPS to graphics format such ad PNG using ImageMagick
so that there would be no transparency, this actually broke
the inclusion of EPS files using groff since the
background fill erased the page. As an example of the
use of the current flags, this is how I now work with the
ImageMagick command convert and the GraphicsMagick
command gm convert:
plotnps -F7 -W10 -EPS -K -BGFILL < SACPSD.PLT > 2.eps
convert -trim 2.eps im2.png
gm convert -trim 2.eps gm2.png
plotnps -F7 -W10 -EPS -K -I < SACPSD.PLT > 3.eps
convert -trim 3.eps im3.png
gm convert -trim 3.eps gm3.png
-
The current version of Computer Programs in Seismology is NP330.Apr-07-2010.tgz
March 18, 2010
-
Modified the generation of EPS
by plotnps to a) paint the background to
avoid transparency in ImageMagick, and b) to permit an
inverted background. The inverted background is useful for
presenting some colored lines, e.g., yellow, which are
difficult to see against a white background. The following
images show the syntax of the command abd also the result of
converting the EPS to a PNG file using GraphicsMagick. The
ImageMagick command trims to the smallest size
-
|
|
|
|
plotnps -F7 -W10 -EPS -K <
GRAYSC.PLT > t.eps
gm convert -trim t.eps graysc.png
|
plotnps -F7 -W10 -EPS -K -I
< GRAYSC.PLT > t.eps
gm convert -trim t.eps grayscinv.png
|
February 28, 2010
-
Introduced a new program sacpsd to compute power
spectral density of ground acceleration noise for use in
seismic network quality control. This program is in
PROGRAMS.330/VOLVIII/src. The program uses long data
segments in Sac file and the acceleration sensitivity output
of the IRIS evalresp from the RESP files created by
the IRIS rdseed. Documentation describing the use of
this program is given in sacpsd.pdf
and the shell scripts used in the document are given in the
file SACPSD.tgz
(which is unpacked using the command sequence gunzip
-c SACPSD.tgz | tar xvf - .
Note that some errors were corrected on February 28, 2010.
February 16, 2010
-
Made slight changes to two
routines in the current version of rdseed:
to move two declarations to the
top of update_type74 in output_seed.c and in
parse_type11 in parse_11.c. The Solaris cc compiler
did not like the declarations to be intermixed with code
farther down.
-
Made changes to elocate in PROGRAMS.330/VOLVIII/src
to facilitate the exchange of data for use in other location
programs and also for easier change of source parameters in
gsac. The extra output is indicated in the color red:
STA IWT ARRIVAL TIME PhIDQL PHASE FM CHAN LAT LON ELEV
OK001 0 20100213053058.250 2 0 i S X Z 35.5611 -97.2895 350.00
OK001 0 20100213053057.219 1 0 i P C Z 35.5611 -97.2895 350.00
OK002 0 20100213053100.168 2 0 i S X Z 35.5493 -97.1966 354.00
... ... ... ... ...
HYPO71 Quality : BA
Gap : 84 deg
ch evla 35.5331 evlo -97.2982 evdp 5.52
ch ocal 2010 02 13 05 30 55 968
The last entries are used by
cut here and pasting into the gsac command line.
January 11, 2010
-
Modified the lp, bp, br and
bp commands of gsac to implement a
Chebyshev Type - I filter using the C1 command
argument. Following sac/sac2000 the lowpass
filter prototype is defined by the number of poles, the
corner frequency, fc, a transition bandwidth, transbw, and a
desired attenuation factor at the frequency
(1+transbw)*fc. References on this filter are given in
Wikipedia, but the reference providing all information,
including the gain normalization constant is Rorabaugh
(1997). Implementation of the Type-II filter, also
known as the Inverse Chebyshev filter (C2 command argument
in sac/sac2000 usage) was not implemented since data
structures in the file gsac_filt.c would have to be
completely redesigned.
Digital
Filter Designers Handbook with C++ algorithms
C. Britton Rorabaugh 2nd Edition
McGraw Hill, New York, 479 pp 1997 Chapter 5
}
else if (filt_lhp == BANDREJECT){
wc
= fwarp(Wc,dt);
wl
= fwarp(Wl/ffac,dt);
wu
= fwarp(Wu/ffac,dt);
num[0] = wl*wu*dt*dt;
num[1]
= 0.0;
to
}
else if (filt_lhp == BANDREJECT){
wc
= fwarp(Wc,dt);
wl
= fwarp(Wl/ffac,dt);
wu
= fwarp(Wu/ffac,dt);
num[0] = wc*wc*dt*dt;
num[1]
= 0.0;
2009
December 4, 2009
-
Upgraded the distributed IRIS programs evalresp from
version 3.2.38 to 3.2.40 and rdseed from 4.7.5
to 4.8. In order to support the CPS architectures,
e.g., CYGWIN (Windows), MacOS-X, LINUX and Solaris, changes
were made to these codes. The changes are given in the links
in this section. This upgrade was required in order to
continue to use the most recent SEED volumes.
The two programs are installed in PROGRAMS.330/bin
with the executable names evalresp and rdseed.
The IRIS distribution found in PROGRAMS.330/IRIS/rdseedv4.8
provides the executables rdseed.linux, rdseed.ppcMac,
rdseed.intelMac, rdseed.Sun86. rdseed.SunSparc.
If you wish to use these programs, you must install them in
your system and adjust the path to find them.
-
evalresp - The
distributed code has an #include <malloc.h>. This
is deprecated in MacOS-X to <malloc/malloc.h>
which means that the code will not compile. Since
modern compilers provide the prototypes for malloc
in <stdlib.h>. I changed alloc_fctns.c, parse_fctns.c,
regexp.c and string_fctns.c by commenting
out the #include <malloc.h> and ensuring the
presence of a #include <stdlib.h>.
Detailed changes.
NOTE THAT evalresp-3.2.40 will configure properly for the
MacOS.
October 8, 2009
Summary of changes made since July 22, 2009
SDRPLANES stk1 dip1 rake1 stk2 dip2 rake2
The reason is that I wanted to
examine the dip variation in the L'Aquila aftershock sequence
-
elocate was changed so that the location time is
also written in a format for use by the gsac command
ch ocal, e.g., ch ocal 2009 07 29 10 00
37 123. The new output is indicated in the color red:
RMS Error : 0.150 sec
Travel_Time_Table: nnCIA
Latitude : 35.9288 +- 0.0130 N 1.4501 km
Longitude : 43.2796 +- 0.0173 E 1.5470 km
Depth : 13.65 +- 0.88 km
Epoch Time : 1247949147.952 +- 0.31 sec
Event Time : 20090718203227.952 +- 0.31 sec
Event (OCAL) : 2009 07 18 20 32 27 952
HYPO71 Quality : CD
Gap : 161 deg
In addition two more
prototype velocity models were added. The KOREA model
corresponding to my pre-computed Green's functions for
Korea, and the nnCIA model corresponding to my
pre-computed Green's functions for waveform of earthquakes
in the Central Italian Apennines.
July 22, 2009
-
Corrected an inconvenience in
the gsac write command. The program
was in the specification of the APPEND suffix and PREPEND
prefix option. Until this modification the shortcuts AP
suffix and PR prefix were permitted. The
string matching in gsac_arg.c only considered the
first two characters. This an attempt to execute the
command GSAC> write APZNZ10HHR APZNZ10HHT
APZNZ10HHZ was doomed since the first AP was
interpreted as APPEND rather than a station name. This
is fixed now, but NEVER use APPEND or
PREPEND as a file name in a write command.
Implementing this feature of sac force the use of a
particularly bad command grammar. [Thanks to Harley Benz]
-
Documentation for the Inversion
of Surface-Wave Dispersion and Receiver Functions for
Structure was corrected to show the correct use of the
-ZMAX flag for shwmod96 [thanks to Wen-Jie
Jiao]
June 19, 2009
-
Jessie Bonner noted some compile problems:
-
Change FORTRAN code that had type declaration after a
data statement: VOLIV/src/jsamat.f (line 45) used in joint96 and gprep96 (line 92)
-
Modify subroutine four.
Evidently a g77 compiler, which is no longer
supported, did not like the fact the there was a call four(complex_array
…) while internally the code was subroutine
four(real_array … ). This was
valid in FORTRAN77 since the memory storage would
be the same if one had a real array x(20), a two
dimensional array x(2,10) or a
complex array x(10) since the
memory organization was:
MEMORY | 1 | 2 | 3 | 4 | ...
1-D real array | x(1) | x(2) | x(2) | x(4) | ...
2-D real array | x(1,1) | x(2,1) | x(1,2) | x(2,2) | ...
Complex array | Re[x(1)] | Im[x(1)] | Re[x(2)] | Im[x(2)] | …
This was carefully fixed by defining a revised
routine zfour(z,npts,isign,dt,df) in all code.
This is a step in defining every variable in a manner
compatible with modern computer languages.
The program files updated were
as follow:
VOLII/src/sacmat96.f
VOLII/src/sacmft96.f
VOLII/src/sacpom96.f
VOLIII/src/spulse96.f
VOLIV/src/rftndr96.f
VOLIV/src/twofft.f
VOLV/src/ffilt96.f
VOLV/src/fspec96.f
VOLVI/src/hpulse96.f
VOLVI/src/hrftn96.f
VOLVI/src/hudson96.f
VOLVI/src/trftn96.f
VOLVIII/src/sacdecon.f
VOLVIII/src/sacevalr.f
VOLVIII/src/sacfilt.f
VOLVIII/src/saciterd.f
VOLVIII/src/sacspc96.f
VOLIX/src/cpulse96.f
The following documentation was
updated:
DOC/OVERVIEW.pdf/cps330o.pdf
DOC/GSAC.pdf/cps330g.pdf
DOC/STRUCT.pdf/cps330c.pdf
DOC/SOURCE.pdf/cps330s.pdf
CALPLOT.pdf/cps330p.pdf
June 11, 2009
-
Hermann Zeyen noticed a problem
in the FORTRAN implementation of the subroutine
arsac in the file SUBS/sacsubf.f. "if
the number of data is multiple of five, the program tries to
read one line too much." This is not a problem in the
C version in SUBS/sacsubc.c
-
Modified the SLU version of rdseed to improve
comments in the sac pole-zero file.
May 23, 2009
-
Corrected moment magnitude
definition in fmech96 to replace the 16.05 by 16.1
in log Mo (dyne-cm) = 16.1 + 1.5 Mw
-
Added a new command to gsac.
The mt command uses the pre-compute Green's
functions (e.g., f96tosac -B -G or f96tosac -B -T ) to
compute a Z, R, T seismogram or the 3 ZRT seismograms
for a double couple source. The output will be in units of m/s
for a step dislocation. The purpose of this command is
to be able to quickly create forward synthetics for use in
finite-fault inversion.
-
Changed the part sacmft96
that selects the period limits. The previous code
looked like if(p .ge. pmin .and. p .le. pmax.and.
p.ge.permin .and. p.le.permax)then which had roundoff
problems as noted by Renata Schivardi at INGV Bologna. The
code was changed to be slightly more generous by
changing the test
to
if(p .ge. 0.99*pmin .and. p .le. 1.01*pmax .and. p.ge.
0.99*permin .and. p.le.1.01*permax)then
-
Changed the part of sacmat96
that selects the period limits. The previous code was if(p
.ge. pmin .and. p .le. pmax)then This was changed to
if(p .ge. 0.99*pmin .and. p .le. 1.01*pmax)then to
overcome roundoff error. This problem was noted by Renata
Schivardi at INGV Bologna.
-
Modified gsac to permit a title to be placed on the
figure generated by the plotsp command.
March 30, 2009
-
Corrected xlim command
of gsac so that the plot axes are correctly reset
after the command xlim off.
-
Added new options to the gsac rotate3
command: rotate3 to uvwsts2 and rotate3
to uvwtril.
The reason for this is that a field system had a broadband
sensor with internal UVW sensors and also an accelerometer.
As part of seismic network quality control, the recordings
of each were corrected for instrument response and the
derived ground motions were compared for that part of the
signal with high signal-to-noise. These should be identical
since the ground motion is the same. For our field
system, this did not occur, and we returned the
broadband and accelerometer to the university and compared
the recordings to a reference system. A similar
comparison showed that the problem was with the broadband
sensor. The rotate3 to uvw was added to gsac to
isolate the internal UVW sensor that was the cause of the
problem. To do this the ZNE motion of the test and reference
systems were rotated to the UVW coordinate system of the
test system and the individual UVW traces were compared.
Because we compared two different 3-component sensors,
recording of the UVW channels of each would not have worked
since each was different.
A description of the coordinate system transformation
implemented now is gsac given in the PDF document rotate3.pdf
March 19 ,2009
-
At the request of Chuck Ammon, hudson96 now has a
flag that permits one to override the model computed T*.
This is invoked with the command option -TSTAR tstar .
A valid range of the tstar is >= 0. If one
enters a value of 0.0 the program sets this internally to
0.0001 as a quick way to implement this without a major code
rewrite.
March 18, 2009
-
Incorporated a fix in
subroutines PROGRAMS.330/SUBS/sacsubf.f and
PROGRAMS.330/SUBS/sacsubc.c to use the Enumerated
Types for IZTYPE of IUNKN, IB, IDAY, IO, IA, IT0, IT1, ...,
IT9.
-
Modified PROGRAMS.330/VOLVI/src/hudson96.f
to fix logical errors in the time delay correction for
the T* operator, and more importantly to overcome numerical
proplems for the S-wave incident at the receiver. This was
done by replacing an explicit matrix sub-determinant by a
compound matrix value.
-
Modified PROGRAMS.330/VOLV/src/time96.f
to compute the travel time and ray parameter for the sS
arrival.
-
The distribution now includes the source code for the menu
program for terminals, dialog (dialog-1.1-20080819)
March 3, 2009
February 21, 2009
-
Renamed the utility program CAL
in PROGRAMS.330/CALPLOT/Utility to calplt. The
reason for this is that MacOS-X does not distinguish between
upper and lowercase executable names, and CAL
conflicts with the calendar program cal. Since
CAL was used in shell scripts to annotate plots,
instances of CAL will be changed to calplt
until all are corrected. The graphics output of the
program is renamed CALPLT.PLT to be consistent with
the naming convention of other programs. Correct
documentation in PROGRAMS.330/DOC and MOMENT_TENSOR tutorial
and others tutorials to reflect this change.
-
Corrected the MOMENT_TENSOR tutorial scripts to provide
more information on copying files. Also corrected the
DOBYTEORDER in the GREEN directory of pre-computed Green's
functions.
February 18, 2009
-
Fixed a but in the programs spulse96, hspec96,
hudson96, time96, timmod96 and refmod96
which was due to the fact that the parameter refdep
was not defined in subroutine frstar. This was
discovered because of memory dump problems on some
computers.
January 5, 2009
-
Introduced a new program fmlpr which is based on
the program lprmech written by Charles J.
Ammon. This program is controlled from the command
line and creates two files. The first is a printer-plot
tabulation of a double-couple focal mechanism solution, and
the second provides those results in a global CMT 'ndk'
format. A example run if given by the line
fmlpr "TITLE" "DATETIME" "GEOG" EVDP MW strike dip rake
"FILE1" "FILE2" "FILE3"
TITLE DATETIME and GEOG are enclosed in quotes
FILE1 - name of file with stations used
FILE2 - file with data summary: NSTA NCMP MINPER
FILE3 - file with filtering commands
fmlpr "USGS/SLU Moment
Tensor Solution" "${YEAR} ${MO} ${DY} ${HR} ${MN} ${SEC}
${MSEC} ${LAT} ${LON} ${DEPTH} ${MAG}" "${STATE}" ${HS}
${MW} ${STK} ${DIP} ${RAKE} sumstaused.txt
sumswavendk.txt sumwfilter.txt
Here the first string
provides a title for the printer plot, the second string
provides information about the earthquake location and the
third string provides a geographical description of the
earthquake source zone. These nest items, e.g., HS,
MW, STK, DIP and RAKE are the source depth, moment magnitude
and double-couple source parameters. The last three items
are text files for further annotation. The sumstaused.txt
lists the stations used for the source inversion, sumswavendk.txt
consists of a single line with three numbers - the
number of stations used, the number of components and the
minimum period used in the inversion. The last file, sumwfilter.txt,
lists the gsac signal preparation commands so that
the filter band is known.
When invoked as
fmlpr "USGS/SLU Moment Tensor Solution" "2008 10 14 03 07 28
000 35.76 -100.704 5.0 3.80" "Texas"
11.0 3.65 285 70 -80 sumstaused.txt sumswavendk.txt
sumwfilter.txt
with sumstaused.txt containing
IU.ANMO TA.MSTX US.CBKS US.JCT
US.KSU1 US.OGNE US.SDCO
US.WMOK
and sumswavendk.txt containing
8 19 10
and sumwfilter.txt
containing
hp c 0.05 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
two files are created: 20081014030728.msg, which is
the printer plot, and 20081014030728.ndk, which is
the solution information in the Global CMT ndk format (http://www.ldeo.columbia.edu/~gcmt/projects/CMT/catalog/allorder.ndk_explained
). The contents of the file 20081014030728.ndk are
ENS 2008/10/14 03:07:28:0 35.76 -100.70 5.0 3.8 0.0 EL SALVADOR
C20081014030728A B: 0 0 0 S: 8 19 10 M: 0 0 0 CMT: 1 TRIHD: 0.2
CENTROID: 0.0 0.0 35.76 0.00 -100.70 0.00 11.0 0.0 FREE S-20090105234025
21 -2.379 0.000 2.526 0.000 -0.147 0.000 2.681 0.000 -0.949 0.000 -0.064 0.000
V10 3.758 24 7 0.000 9 102 -3.758 64 211 3.758 285 70 -80 78 22 -116
2008
December 22, 2008
November 12. 2008
-
Modified plotxvig to
permit the use of a -C flag. When this is
set, the arrow cursor for display is replaced by a
crosshair. The purpose of this is to be able to read
axis numbers for a point within a plot.
-
Modified do_mft to permit the use of a cross-hair
cursor. Note that this is not perfectly implemented. The
purpose of both of these changes is to be able to compare
the dispersion shown in a regular plot to that of the
multiple filter analysis when plotting both side-by-side. I
was comparing observed dispersion to an independent
tomographic estimate.
September 3, 2008
August 4, 2008
-
Modified the CALPLOT graphics
programs plotxvig, plot4014, plotnps, plotgif
and plotpng to support -X0x_offset and
-Y0y_offset flags. These were always part of the reframe
command for repositioning a plot. I added this feature for
use mostly with plotxvig so that I can display
plots that are too high on the page.
-
Changes #define NCHAR 1000 in VOLVIII/gsac.src/gsac_parse_command.c
to #define NCHAR 2000 to permit more file names on
the command line. I noticed this when trying to read in a
lot of files, but I did not have this problem with using a
wild card.
June 13, 2008
-
Corrected the gsac_refr.c (refraction
analysis routine) of gsac, so that the refraction
velocities are given correctly for a reverse spread, e.g.,
negative distances which would yield negative slopes and
velocities.
-
Modified refmod96 so that the line width parameter
(e.g., command line -W width) applies to the reflected
arrivals. For multilayered models, the line width or
pattern is a function of the reflection coefficient of the
deepest reflecting interface to be able to focus on the
important reflection. The reflection times are still the
times to the deepest layer, e.g., if the deepest layer
boundary is 3, then the rays computed are 1 1, 1 2 2 1
for the first reflection, and 1 1 1 1 and 1 2 2 1 1 2
2 1 for the first multiple; however the mixed multiple 1 2 2
1 1 1 is not computed. A plot showing the
refraction and reflection predictions is given in refmod96 examples
May 25-29, 2008
-
Corrected hudson96 so that the SH arrival times
are computed and ultimately placed in the file96 and
sac file trace headers (May 25, 2008). To properly
set the arrival time, the start of the teleseismic
attenuation pulse is determined empirically using two FFT's.
This must be done using the same DT as for the synthetic
because of the frequency dispersion inherent in the causal
T* operator (May 28, 2008). Corrected indexing when merging
source and receiver structure with teleseism structure. The
halfspace was not inserted correctly (May 29, 2008).
May 7, 2008
-
Modified evalresp in PROGRAMS.330/IRIS/evalresp-3.2.38.slu
to handle FIR stages with a large number of
coefficients. Specifically, Change Eric J. Haug SLU
May, 2008 to handle continuation for FIRST with a large
number of coefficients. Basically we need to get past the
tendency of some SEED writers to put the following phase in
the RESP file "No Abbreviation Referenced" for Response in
units lookup and Response out units
lookup. The modified code provides the same output as
the current version of the IRIS jevalresp
April 9, 2008
March 31, 2008
-
Created a new program hudson96 which makes
approximate teleseismic synthetics following the work of
Hudson(1969). This approach focuses on the direct
teleseismic P or S arrival through the use of a stationary
phase approximation for the ray parameter connecting the
direct arrival from the source to the receiver. The
interesting feature of this approach is the use of
propagator matrices for the source and receiver crusts, so
that the depth phases are automatically included as well as
the details of the source and receiver crustal models.
The program is self contained in that the travel time, T*
and geometrical spreading are computed within the
program. A tutorial on the use of the program is on
the tutorial page.
Hudson, J. A. (1969). A quantitative evaluation of seismic
signals at teleseismic distances - II. Body waves and
surface waves from an extended source, Geophys. J. Roy.
astr. Soc. 18, 353-370.
-
The programs time96, timmod86, refmod96,
spulse96, and hspec96 were
upgraded with the same travel time routine used in hudson96,
to now compute the geometrical spreading for teleseismic
arrivals.
March 14, 2008
-
Added a new flag to hprep96. The -ML
length_mul is typically used in increase the length
for wavenumber integration,L , estimated using the Bouchon
criteria, which is that dk = 2 pi / L . There are
circumstances when the default value of L is a
little too small, and significant noise signals occur at
later time. This option is easier than trying to guess
the correct value of L for the command line
override, e.g., -XL xleng
February 8, 2008
-
Corrected an error in the prs command of gsac.
Because of an incorrect clipping command in the graphics,
the trace annotation was not done correctly when using the prs
ann sta command.
-
Tested the Earth flattening used in hspec96, tspec96,
surf96, joint96, sdisp96, sregn96 and slegn96
January 28, 2008
-
Created a new program ttime96
-
Installed identical travel time
routines for TI models in the following programs: ttime96,
ttimmod96, tspec96 and hprep96.
-
The travel time validation is
given at the links Isotropic Model Test
and Transverse Isotropic Model Test
-
Fixes errors in tspec96 that affected synthetics
with Q. For an isotropic model, the output of tspec96 agrees
with that of hspec96
January 22, 2008
-
Installed identical travel time routines for isotropic
models in the following programs: time96, timmod86,
refmod96, spulse96, hspec96. The new routines
provide the correct results for flat and spherical velocity
models for travel times, ray parameter, T* of the P, S, pP
and sP phases. They also correctly handle the artifice
of representing the atmosphere by a stack of layers with
negative layer thickness so that a depth of 0 corresponds to
the surface of the solid.
January 17, 2008
January 10, 2008
January 3, 2008
-
There were a number of changes made to the wavenumber
integration and surface-wave codes to permit a better
Earth-flattening transformation to permit the computation of
seismograms for a spherical Earth by using the plane-layered
code. These transformations were tested using mineos.
A description of the current status of the Earth flattening
studies is given at the following link. ../TUTORIAL/SPHERICITY
A detailed tutorial on teleseismic synthetics and source
inversion must be prepared.
This update changes the following programs: sdisp96,
sregn96 and slegn96 in
PROGRAMS.330/VOLIII/src, srfdis96, srfdrr96
and srfdrl96 in PROGRAMS.330/VOLIV/src, and hspec96
in PROGRAMS.330/VOLVI/src. Note hspec96 was
modified on January 14, 2008 to correctly handle the source
and receiver depth insertion for the flattening. The use of
the reference depth still needs work to handle atmospheric
layers about the surface.
January 2, 2008
-
Created a new program: redodate
The purpose of redodate
is to change a
data/time specification through an offset,
e.g.,
redodate 2009 01 01 00 01 02 456
-3660
returns
2008 12 31 23 00 02 456
I require this in order to
specify window segments for traces that I wish to
download. Previously i started at the origin time, but
I needed more signal for inversion, so I would like to start
some offset (a negative number) before the specified origin
time. This code segment indicates how this would
be used in a shell script, where I would like to start 60
seconds before the origin time:
YEAR=2009
MONTH=01
DAY=01
HOUR=00
MINUTE=01
SECOND=02
MSEC=456
OFFSET=-60
redodate ${YEAR} ${MONTH} ${DAY} ${HOUR} ${MINUTE} ${SECOND} ${MSEC} ${OFFSET} >
tmp
read YEAR MONTH DAY HOUR MINUTE SECOND MSEC < tmp
echo "YEAR :" ${YEAR}
echo "MONTH :" ${MONTH}
echo "DAY :" ${DAY}
echo "HOUR :" ${HOUR}
echo "MINUTE :" ${MINUTE}
echo "SECOND :" ${SECOND}
echo "MSEC :" ${MSEC}
rm -f tmp
2007
November 17, 2007
-
Upgraded the distributed IRIS programs evalresp from
version 3.2.25 to 3.2.38 and rdseed from 4.5 to
4.7.5. In order to support the CPS architectures,
e.g., CYGWIN (Windows), MacOS-X, LINUX and Solaris, changes
were made to these codes. The changes are given in the links
in this section. This upgrade was required in order to
continue to use the most recent SEED volumes.
The two programs are installed in PROGRAMS.330/bin
with the executable names evalresp and rdseed.
The IRIS distribution of rdseed provides the
executables rdseed.linux, rdseed.ppc-mac, rdseed.intelmac
and rdseed.solaris. These binaries are available in
the PROGRAMS.330/IRIS/rdseed4.7.5 directory of CPS.
If you wish to use these programs, you must install them in
your system and adjust the path to find them.
-
evalresp - The
distributed code has an #include <malloc.h>. This
is deprecated in MacOS-X to <malloc/malloc.h>
which means that the code will not compile. Since
modern compilers provide the prototypes for malloc
in <stdlib.h>. I changed alloc_fctns.c,
parse_fctns.c, regexp.c and string_fctns.c by commenting
out the #include <malloc.h> and ensuring the
presence of a #include <stdlib.h>.
Detailed changes.
NOTE THAT evalresp-3.2.40 will configure properly for
the MacOS. When this is officially released, it will
be included in CPS!
-
rdseed - Several
changes were made.
-
The most important was
to change the use of long in the definition
of the integer SAC header values to int.
Before computers were truly 32 bit, short meant
a 2 byte integer, long a 4 byte integer,
and int could mean a byte integer.
Currently, int means 4 bytes. A
problem arises on 64 bit machines, for which a long
means an 8 byte integer. One way around
this is to use the -m32 flag on the
compiler. CPS changes the long to
int.
-
Another change relates
to the strupr routine. This is actually
provided by some libraries. Thus all instances
of strupr are changed to Strupr and
a definition is placed in Include/rdseed.h
-
Utilities/alloc_linklist_element.c
- add #include <stdlib.h> to define
malloc()
-
Ah/makefile -
remove CC=gcc since not all compilers use gcc
- note that CC is defined in the main Makefile
-
Decoders/makefile
- remove CC=gcc since not all compilers use
gcc
-
Parsers/makefile
- remove CC=gcc since not all compilers use
gcc
-
Utilities/log_errors.c
- change the syntax of stderr_to_file from stderr_to_file(char
*fmt, char*ap) to void
stderr_to_file(char *fmt, va_list ap) for
comparibility with <stdio.h>
-
Main/output_sac.c -
Place comments into the pole-zero file giving
information about the station, network, date, etc.
(Sample SAC pole-zero
file)
-
Main/output_resp.c -
Send information about the network to stderr, e.g.,
station, network, component, location, on_date,
off_date, latitude, longitude, elevation, response
file name, component azimuth and dip and sample rate
in print_resp.
(Sample stderr
output)
-
Updated the manual entry in Main/rdseed.1 to
make the command line flags more complete on the
first page. The pdf version of this document
is in PROGRAMS.330/DOC/IRIS.pdf where you
will find evalresp.pdf, rdseed.pdf
and SEEDManual_V2.4.pdf.
Detailed changes
The modified rdseed was successfully
compiled on both 32 and 64 bit Intel LINUX machines
using the GNU compilers, on a SPARC Solaris machine
using SUN compilers, on an Intel Windows machine
under the CYGWIN environment, and under MacOX-X
using the GNU compilers. The only compiler warnings
were the following:
cc -I../Include -c -g -c -o decode_steim.o decode_steim.c
decode_steim.c: In function `decode_steim':
decode_steim.c:231: warning: integer overflow in expression
decode_steim.c:231: warning: integer overflow in expression
for all compiles, and
cc -I../Include -c -g -c -o parse_30.o parse_30.c
parse_30.c: In function `parse_type30':
parse_30.c:96: warning: cast to pointer from integer of different size
on just the 64-bit LINUX compiler (note that
the -w32 compiler flag was not used).
November 9, 2007
-
Modified the code of wvfmch96 so that there is no
internal limit on the number of waveforms for which forward
synthetics are required. In the present distribution, the
maximum number of waveforms permitted for use by wvfmch96,
wvfgrd96, wvfmt96 and wvfmtd96 is 2000, with
each trace permitted to consist of 4096 points.
Because wvfmch96 creates a forward synthetic for a
given moment tensor description, this program can be used as
part of a QC process to evaluate all recorded waveforms in a
data center. Since there can easily be more than 2000
such waveforms today, hard dimension limits are a major
inconvenience. The logic of wvfmch96 was
modified so that the forward synthetic is created separately
for each input file, rather than reading in all files and
corresponding Green's functions into memory.
October 21. 2007
-
Hacked a fix for the distance computation used in gsac
(gsac_subs.c) and udelaz. The
problem was that if the event - station latitude/longitude
pair differed in coordinates by 0.0001 degree or less, then
the computed distance in kilometers was incorrect because of
roundoff error of the angles used for the elliptic
integrals. The artifice used for distances less than 1.0 km,
is to use the spherical relation delkm = 6371.003 *
delradian for the short distances.
October 19. 2007
October 04, 2007
-
Modified sacmft96 and sacpom96 to take
ABS(DIST) where DIST is from the SAC header. This is
because I sometimes require negative distances when using
shallow refraction data. For a split spread, the
gsac refr command will display the split
spread. The refl command will also work
now. The only bad thing is that the refraction
velocities may now appear to be negative. These
changes were made as part of an effort to develop a
procedure for determining shallow S-wave velocity structure.
A problem with the distance/azimuth computations in gsac
was noticed in the process of computing epicentral
distances less than 1 km. This problem will also
affect udelaz. This is currently under
investigation.
August 30, 2007
-
gsac - implemented
two new commands in prs (plotrecordsection): ScaleRelative
(SR) and ScaleAbsolute power (SA Power) to control the
amplitude of the traces in the record section.
ScaleRelative is the old behavior which just scales each
trace to the same maximum amplitude (AMP value), except that
the scaling now applies only to the actual trace window and
not the whole trace. ScaleAbsolute 0.0 adjusts all
traces to plot true amplitude. If the non-time axis is
distance, then ScaleAbsolute 1.0 adjusts for
geometrical spreading by multiplying all traces by distpower
. For a true refracted arrival (e.g., with no velocity
gradients), power=1.5 would show the refractions at the same
level. The current gsac version is
now[V1.1.21 30 AUG 2007]
-
wvfgrd96 is now modified so that the output traces,
e.g., TRACE.obs and TRACE.pre have the time shift applied.
This means that if pltsac is used with the flag -USER9
the time shift will be displayed even though the traces
align. The objective here is to present the observed and
predicted in such a way to focus on amplitude and phase
differences and not time shifts.
August 19, 2007
August 16, 2007
August 14, 2007
-
Initial development of new source model for surface-wave
and waveform inversion - the crack. Following Nakano, M.,
and H. Kumagi (2005). Waveform inversion of volcano-seismic
signals assuming possible source geometries, Geophys. Res.
Letters 32, L12302, doi:10.1029/2005GL022666, a new command
line option -CRACK is permitted for the programs srfgrd96,
sdprad96, sdpspc96 and wvfmch96. The crack is
specified in terms of the parameters -DIP dip -STK -RAKE
rake -MW mw or -M0 mo where dip is the dip
of the crack, stk is the dip-direction of the
crack (dips down to the right when looking in the direction
of strike). The rake is used to indicate an
expanding crack (positive) or closing crack
(negative). The moment magnitude or moment are
positive numbers.
At present the program fmplot is not modified, nor
is the output of sdprad96 to indicate that the
crack model was used instead of the earthquake double
couple.
The reason for this introduction of a new source was to
study the Utah mine collapse of 2007 08 06 08 48 40!
August 1, 2007
July 16, 2007
-
gsac - corrected error in the remove trend rtr
command. Roundoff error messed up the determination of
the regression equation a + bx . Previously x was the time
index, e.g., i=0, i < npts. For long time series this let
to large errors in the determinant. I replaced this by
defining x as i/npts with varies between 0 and 1 for the
time series.
July 1, 2007
-
gsac- implemented a new option to ppk (plotpk),
e.g.,
ppk
pq or ppk
pquality
This is functionally similar to
the previously introduced 'ppk quality' except
that the purpose is to simultaneously define a useful trace
and to reset the P-time. For my source inversion, I set the
theoretical P-time using the AK135 predicted times.
This is OK for source inversion since the inversion code
permits a simple waveform time shift. However for broadband
depth or energy determination, it is necessary to start at
the P time. To speed up the review, I added this new
option. So now move the crosshair to the P-wave first
arrival, and then click any mouse button. Simultaneously the
P-arrival time is reset and the trace is marked as one to be
used (IHDR20 is set to +1).
April 23, 2007
March 31, 2007
March 19, 2007
-
gsac - Added an option to ppk (plotpk), e.g.,
ppk q
For source inversion, one must examine many traces to decide
which to use since the inversion results are strongly
influenced by bad data. For teleseismic and regional
data, one may review hundreds of traces. So gsac was
modified to permit a rapid assessment of the trace quality.
The assessment is placed in the integer header value IHDR20
(gsac notation) and a subsequent shell script examines the
value there to decide if the trace should be moved to the
final directory for source inversion.
The purpose is to use the plotpk display to quickly
define whether to use a trace for a source inversion.
For teleseismic inversion one must examine the quality of
the P-wave arrivals, so one reads the traces, band-passes,
sorts with distance, applies a suitable xlim and executes
the command
GSAC> ppk relative perplot
4 q
The result is the image
The default behavior is that a mouse click says accept - of
course one can use the 'a' key to accept and the 'r' key to
reject. The default behavior of the mouse click can be
changed using the menu at the bottom. When a trace is
accepted or rejected, a red '+' or a blue 'X' is drawn at
the lower left corner of the trace. The effect of
these operations is to set the integer header position 20,
which I call IHDR20 to +1 for accept and 0 for reject. The
default value of this header field is -12345 This
changes added about 300 lines of trivial code to
gsac_plotpk.c. (In the image above, the P times are from the
velocity model. The slight offset is no problem for the
inversion since the inversion programs implement a time
shift). This process of performing QC for P, SH and SV is
shown the shell script IDOQC
The value of this approach to assess trace quality was
immediately apparent by the resulting improved source
inversions. The current version of gsac is V1.1.18
31 MAR 2007
March 15, 2007
-
time96 - corrected the
on-line help to reflect the -P -SV and -SH
flags
-
wvfmch96, wvfmtd96, wvfmt96 and wvfgrd96 - added
error checking on the input files - reject a data set if the
number of sample points is <= 4 or if DEPMAX=DEPMIN,
which indicates a faulty data set. Current version of wvfmtd96
and wvfmt96 were modified to use both the
external a priori and internal variance
weighting schemes.
February 22. 2007
-
time96 – now supports
the -P -SV and -SH flags to give first
arrival time and corresponding ray parameter for the first
arrival. Previously only supported P-wave. Why? I wanted to
automate source inversion by having this program define
first arrival times rather than interactively reading them.
This is possible because I already know the location. The
section of the shell script that does this is
for i in *sac
do
GCARC=`saclhdr -GCARC $i`
EVDP=`saclhdr -EVDP $i`
A=`time96 -M ${MODEL} -GCARC ${GCARC} -T -EVDP ${EVDP}`
T0=`time96 -M ${MODEL} -GCARC ${GCARC} -T -EVDP ${EVDP} -SV`
echo ${GCARC} ${EVDP} ${A} ${T0}
gsac << EOF
rh $i
synchronize O
ch A ${A} T0 ${T0} T1 ${T0}
wh
quit
EOF
done
The 'synchronize O' is used to reset the time stamp so
that 'O' , the offset of the origin time with respect to the
reference time, is zero. In this case then the 'A' will be
the travel time of the P first arrival.
February 20. 2007
February 8, 2007
-
The computation of epicentral
distance in kilometers was changed in gsac, udelaz
and edabac. Prior to this it was estimated from the
great circle arc, thus assuming a spherical Earth. It is now
computed numerically by direct evaluation of an incomplete
elliptic integral of the second kind. Sac uses Rudoe's
reverse formula (Geodesy, G. Bomford, Carlendon Press, 4th
ed, 1980, Section 2.15(b), page 121. Rather than
getting confused about inverse tangents, the idea of Rudoe
was used, e.g., the plane through the center of the Earth,
the station and epicenter intersects the spheroid as an
ellipse, and the linear distance is computed along the
ellipse. However, this derivation uses vector analysis more
that it does trigonometric relations. The computation
of the SAC header value dist agrees
with the values of sac2000 (based on a comparison of
19554 different combinations of EVLA, EVLO, STLA and
STLO.
-
Output formats of sacmft96 were changed to
avoid format overflow (***** in FORTRAN) when
AZ, BAZ and GCARC had the undefined values of -12345.
January 24, 2007
-
timmod96 has two new
out options:
timmod96 -TIMEP pfile
timmod96 -TIMES sfile
where pfile or sfile are ASCII
files with a one distance – time pair per line, e.g.,
124.454140 20.464310
238.482346 35.048897
145.274033 24.015045
350.404083 48.721909
which can be created from the
DIST and A (for P) sac header values through a loop
for i in *Z
do
saclhdr -NL -DIST -A >> ptime
done
This option permits plotting
measured first arrivals on the same plot as the model
predicted values
-
gsac – the merge command
now has the command line option GAP gap_value. Before this
change, a merge of SAC files having gaps resulted in a zero
fill of the gaps. Now the user value is inserted. This may
permit a user program to detect the gap. For example if the
SAC trace consists of integers from the ray 24 bit
digitizer, the expected extreme values are ±8388608.
A “MERGE GAP 1.0e+9” would fill the trace with an
impossible number which can then be flagged.
-
gsac –
new command outcsv This command causes all traces
in memory to be output in ASCII as comma separated
variables (CSV) in the file name f001.csv. Each
row of output consists of the values at one time sample
with entries “Time,amp_trace_1,amp_trace2 ...” The reason
for this command was to create a simple output format that
could be read by Excel or OpenOffice spreadsheet programs
so that students can perform simple time series analysis
and plots. Note that OpenOffice does not permit more than
65536 to be read in
January 13, 2007
-
Modifications to gsac:
Introduced new commands grid, xgrid, ygrid, background.
The grid options permit setting a grid on plots and also
too define the color and type of the grid lines. The
background command permits setting a background color in the
plotting frames.
-
GSAC>
GSAC - Computer Programs in Seismology [V1.1.15 17 JAN 2007]
Copyright 2004, 2005,
2006, 2007 R. B. Herrmann
Also corrected appearance of the help screen and got the
grids to work on the plotsp command. My excuse is that I
only had battery power in a house without electricity for
two days because of the ices storm
January 3, 2007
-
Fixed fmech96, which did not set the back azimuth
correctly. Now one can create Z R T and Z N E
three-component synthetics using fmech96, convert
them to SAC format using f96tosac and used gsac
to read in the Z N E to make the Z R T and everything
agrees.
January 3, 2007
January 3, 2007
-
Changed all dimensions for
layering to now have 200 layers instead of 100. Note this
does not apply to the Cerveny programs cprep96, cpulse96,
cseis96.
-
changed time96 so that it now can output the ray
parameter. This gets around the problem of using udtdd which
is an implementation of the Jeffreys-Bullen curves. There is
now a consistency between the model96 synthetics
and the travel time prediction. time96 is used to
predict ray parameter and first arrival for teleseismic
P-wave synthetics. See the tutorial.
2006
December 28, 2006
-
Reformatted help entries in gsac
to be easier to read.
-
Implemented new commands in gsac: version,
triangle, boxcar, trapezoid. version lists the
version number. triangle, boxcar and trapezoid
are time domain filters that convolve the traces in
memory with an isosceles triangle defined by its half-width,
a boxcar defined by its width, and a trapezoid defined by
the length of its three segments. All of these pulses
are designed to have unit area and function as a lowpass
filter. There is some granularity in the implementation that
means that the sequence of commands
triangle width 1.0
is
not the same as two commands
boxcar width 1.0
boxcar width 1.0
even though this should be true by virtue of the
convolution theorem.
December 15, 2006
December 12, 2006
November 8, 2006
October 18, 2006
October 14, 2006
October 1, 2006
September 16, 2006
-
gsac Version 1.1.11 – Commands ignore a leading #.
Also the pole-zero and frequency-amplitude-phase files
ignore leading blanks. Finally the ABS macro in gsac.h was
correctly written, meaning that the x -x works properly in plotpk
whether the first x is the earliest or the latest time. The
ignore leading blanks in the response files was required to
overcome some laxness in some pole-zero files. Finally the
ignore # serves the same purpose as in the sh or bash shells
– e.g., to have an inline comment. This means that gsac
commands in a shell script can now have comments. For
example, we can now
#!/bin/sh
#####
# generate a pulse and low pass filter it
#####
gsac << EOF
#####
# generate a pulse
#####
fg triangle delta 0.05 npts 1024
#####
# lowpass at 1 Hz
#####
lp c 1 n 2
#####
# save as the file LP.sac
#####
w LP .sac # a comment can be placed here too
quit
EOF
August 20, 2006
August 8, 2006
-
Corrected a major error in the first arrival computations
in gsac in the interpolation routine. This
was caused by a time series with more than 10,000,000 and
involved floating point roundoff problems in the time array
used for interpolation.
August 8, 2006
-
Began adapting codes to the gcc/gfortran
(4.2) compiler suite. For the most part this just
required adhering to the strict 72 character line for the
FORTRAN 77 standard.
-
The gfortran 4.2 uses buffered
IO, thus overcoming slow IO of the gfortran 4.0 suite
-
The new makefiles force a 4 byte header for the unformatted
sequential IO instead of the default 8 byte.
August 4, 2006
-
Corrected a major error in the first arrival computations
in time96, timmod96, refmod96, hprep96,
hspec96, tspec96, spulse96. Faulty
logic gave too early an arrival time if the first arrival
was the direct wave. This was fixed by computing the
distance at which the critical ray appears; if this is
greater than the desired distance, then use the direct
arrival time. In addition we found that one of the
refraction times was not computed correctly which velocity
decreases with depth. The error means that the pole-zero
option was not correctly implemented. (Thanks to C. J.
Ammon).
June 16, 2006
June 10, 2006
-
Added map command to gsac. This command
creates a well commented GMT script that plots stations,
epicenters, raypaths and topography. The shell script can be
easily edited to change the default plotting parameters.
May 27, 2006
April 26, 2006
-
Corrected gsac_lh.c and gsac_ch.c to properly handle the
IEVREG header variable. sac2000 actually has internal list
of the Flinn-Engdahl regions that print out a nice string
for the integer variable. gsac now just outputs the integer
value of this field.
-
prfmod96 is available. This was written to display
regional velocity models from the joint inversion of
receiver functions and surface waves in Korea. The user
defines a profile in terms of the latitude and longitude at
the ends of the profile. The coordinates of each model
(station) and station model file are read in. This program
plots a contoured velocity map from stations within +-W of
the profile. The contours are labeled. The use has control
over the contour intervals and the labeling intervals.
-
Major changes to the VOLVII waveform inversion
programs. wvfmtd96 and wvfmt96 are now
multi-pass programs that perform and inversion, determine an
alignment time shift and weighting, and then perform final
inversion. The logic of the code follows that developed by
Harley Benz at USGS for teleseismic inversion. As part of
the code modifications, wvfgrd96 and wvfmch96
were also modified.
March 19, 2006
-
Error in gsac/ gsac_prs.c that
tried to flush X11 when in plot mode and not X11 mode. This
caused the program to crash. Also prs relative
works. I noticed this when I wants to plot observed versus
predicted teleseismic P-wave traces, windowed about the P
arrival as a function of distance. This was done to support
the newly modified wvfmtd96 which permits time
shifting
February 27, 2006
-
Fixed major error in PROGRAMS.330/CALPLOT/src/XVIG/src/window.c
The execl( ...,init_height, 0) was WRONG!. It should
have been execl(...,init_height, NULL) where NUL is a (char
*)0. This error appeared using a 64 bit LINUX. Thanks to
Domenico Di Giacomo, INGV - Istituto Nazionale di Geofisica
e Vulcanologia, Sezione di Milano.
February 27, 2006
-
Added a backup or return to
previous display option to the plot command of gsac.
This is useful when previewing many traces using the perplot
option to skip back to re-examining missed features.
-
Changed internal routines to prevent a mis-setting of USER1
and USER2. USER1 and USER2 are set to be the minimum and
maximum periods of the filtered trace. When picking P- and
S-arrival times, one may wish to filter the trace with a
zero-phase bandpass filter to see the arrival. The pick is
then saved using the wh command. Until this fix the
USER1 and USER2 were also set. Then then led to an
inconsistency that the header information would not reflect
the trace content. Now the minimum and maximum periods are
preserved, but only written out when the w command
rewrites the trace. This fix was introduced in the source
code for all bandpass filters, the transfer and whiten
commands.
January 3, 2006
-
Began adapting codes to the gcc/gfortran
(4.0) compiler suite. For the most part this just
required adhering to the strict 72 character line for the
FORTRAN 77 standard. There are still problems with the
surf96/rftn96/joint96 suites
-
Introduced an O or o option to gsac
to permit synchronize to set the reference time as the
origin time.
2005
December 14, 2005
September 25, 2005
August 10, 2005
August 3, 2005
June 30, 2005
-
Fixed cut option in gsac so
that cut CAL YEAR MONTH DAY HOUR MINUTE SECOND
MILLISECOND works correctly.
-
time96 created to predict P first arrival times for
flat and spherical earth velocity models. This is used to
define the starting time window for teleseismic synthetics
to avoid unnecessary white space before the first arrival.
The use of this program in a shell script to compute the
teleseismic P-wave signal but to apply a phase-velocity
filter to focus on teleseismic P for speed
for GCARC in \
20 21 22 23 24 25 26 27 28 29 \
30 31 32 33 34 35 36 37 38 39 \
40 41 42 43 44 45 46 47 48 49 \
50 51 52 53 54 55 56 57 58 59 \
60 61 62 63 64 65 66 67 68 69 \
70 71 72 73 74 75 76 77 78 79 \
80 81 82 83 84 85 86 87 88 89 \
90 91 92 93 94 95 96 97 98 99 \
100 101 102 103 104 105
do
#####
# convert epicentral distance in degrees to kilometers
# for the Earth
#####
dist=`echo ${GCARC} | awk '{print 111.195*$1}' `
#####
# for this distance and source depth get the ray parameter
# and define the phase velocity limits
#####
RAYP=`udtdd -EVDP ${HS} -GCARC ${GCARC}`
CVAL=`echo ${RAYP} | awk '{print 1.0/$1}' `
CMAX=`echo ${RAYP} | awk '{print 4.0/$1}' `
C1=`echo ${RAYP} | awk '{print 3.2/$1}' `
C2=`echo ${RAYP} | awk '{print 0.49/$1}' `
CMIN=`echo ${RAYP} | awk '{print 0.46/$1}' `
#####
# get P travel time == arrival time
#####
A=`time96 -M AK135sph.mod -GCARC ${GCARC} -T -EVDP
${HS}`
T0=`echo
$A | awk '{printf "%f", $1 - 100}' `
cat
> dfile << EOF ${dist} 1.0 1024 ${T0} 0.0 EOF
hprep96
-M AK135sph.mod -HS ${HS} -HR 0.0 -EQEX -TF -BH -d dfile
-CMAX ${CMAX} -C1 ${C1} -C2 ${C2} -CMIN ${CMIN} -NDEC 1
hspec96
-H
hpulse96
-p -V -l 1 >> file96v
hpulse96
-p -D -l 1 >> file96d
-
Modified sacmft96 and do_mft
to create a temporary file called MFT96.disp instead
of MFT96.DSP to avoid problems when using a
case-less file system, e.g., Cygwin under Windows
-
Modified sacmft96 so that color contouring and the
spectral amplitude plots reflect the envelope amplitudes
within in the chosen group velocity window. Prior to this,
colors and amplitudes were set by the amplitudes of the
entire filtered trace.
June 16, 2005
-
Fixed typos in gsac which
had Pp instead of pP in the Teleseismic
phase menu for plotpk. Also ensured that the reset in prs
actually reset all parameters
-
hspec96 now has an earth flattening routine for
spherical earth models. Note hprep96 and tspec96 must be
upgraded to handle a spherical model.
March 23, 2005
-
Implemented B option to plotpk
command of gsac to permit moving back in a
multi-page display. (requested by Risheng Chu of SLU)
-
Implemented fileid command of gsac to
permit trace labeling. The syntax was extended to permit
placement at upper (UC) and lower (LC) center of each plot.
(Requested by Luis Rivera and Jeroen Ritsema)
February 11, 2005
-
Added boxcar to gsac
funcgen command - PROGRAMS.330/XOLVIII/gsac.src/gsac_fg.c
-
Added debug statements to gsac
transfer command to catch types in response input - PROGRAMS.330/XOLVIII/gsac.src/gsac_trans.c
-
Modified PROGRAMS.330/CALPLOT/src/cmd/plotxvig.c
to introduce a new window behavior. If the window is
resized before an erase, the next frame will then use the
window. This means that a non-default window size does not
have to be changed. The gframe calplot command has
been changed to perform an automatic erase but to prohibit a
resize.
-
Corrected gsac xlim commmand to correctly handle
GMT and CAL arguments and to forbid xlim o -10 o 10 if
o is not set withing the header
February 5, 2005
-
Modified PROGRAMS.330/CALPLOT/src/XVIG/src/xvig.c
to unlock the keyboard for the terminal window. Successful,
except that the first character is lost because of the event
catching mechanism. More low level X11 work must be done. On
Solaris with the CDE window manager, the trace window can
only be moved use the Move under the menu option and not by
dragging the window - I will not worry about this in the
future
-
Modified VOLIII/src/spulse96.f
VOLVI/src/hpulse96.f VOLIX/src/cpulse96.f
VOLV/src/gpulse96.f to add a -Z flag to indicate that
the internal parabolic or triangular pulses are to be zero
phase - this is required if we attempt to model the
interstation Green's functions obtained by cross-correlation
of background noise, otherwise there will be a delay causing
a mismatch of synthetic and observed responses. This also
necessitated a change in the documentation DOC/OVERVIEW.pdf/cps330o.pdf
January 31, 2005
-
SUBS/SUBS
-
sacsubc.c, sacsubc.h,
sacsubf.c Added brsach and arsach
only header information. Previously brsac was used with
the overhead of reading all the data. This fixed a
problem in saclhdr with very large files
-
grphsubc.c fixed
logic in clipping routine (baker@usgs.gov)
-
VOLI/src
-
VOLIII/src
-
sio.f corrected minor
typos
-
sdprad96.f corrected
minor typos
-
srfgrd96.f corrected
minor typos
-
sdpspc96.f corrected
minor typos
-
VOLV/src
-
genray96.f subroutine
chkdep, hm1 not defined changed to dm1,
baker@usgs.gov
-
gpulse96.f LER not
defined in subroutine source - baker@usgs.gov
-
ttimmod96.f subroutine
fstarr - vlmm undefined - changed to vlmn,
baker@usgs.gov
-
fmdfit.f extra long
lines split
-
fmplot changed
default so that no nodal planes are plotted unless
requested by strike,. dip, rake, force or moment tensor
flags. In this simple mode the command fmplot -F
fmplot.tmp will just plot first motion
data. It is then is then up to the analyst to use the
stereonet produced by stereo to determine the
nodal planes and then to rerun fmplot for the
final plot
-
VOLVI/src
-
tspec96.f vlmm not
defined in subroutine fstarr replace with vlmn,
baker@usgs.gov
-
hprep96.f vlmm not
defined in subroutine fstarr replace with vlmn,
baker@usgs.gov
-
VOLVII/src
-
VOLVIII/src
-
saclhdr.c use brsach
instead of brsac - do not need data but want header of
potentially large trace file
-
saciterd.f nbumps
undefined in subroutine tdomain, changed to nshift.
tshift undefined in subroutine tdomain changed the
theshift, baker@usgs.gov
-
elocate.f emares not
defined in subroutine sumup - now set to -9.99
-VELMOD flag creates the file VEL.MOD. It no longer
lists the sample velocity model fileN
-
sacfilt.f LER not
defined in subroutine gcmdln baker@usgs.gov
-
sacdecon.f thshift
undefined in main routine - change to the shift
baker@usgs.gov
-
VOLVIII/gsac.src
-
Many changes
-
Improvements:
-
plot, plotpk - low
level plot routines changed to let qdp
decimation be controlled by screen resolution
-
plot, plotpk -
low level plot routines changed to reduce number of
non-drawing penup moves
-
prs
(plotrecordsection) - low level plot routines
changed to reduce number of non-drawing penup moves
-
cut, xlim - now
also take GMT 2004 002 01 02 03 445 and CAL
2004 01 02 01 02 03 455 to define the time window
-
GNU readline implemented
- the user may use the 4 arrow keys to move around
the command line and to view history of commands
-
New commands
-
reverse -
reverse a time series
-
correlate - cross-correlate
time series
-
sign - one bit
sgn() operator
-
stack - stack
traces in memory
-
whiten - force
flat amplitude spectrum
-
markt - put up
velocity tics at 1, 2, 3, 4, 5, 6, 7 and 8 km/sec (note
that these values are pre-assigned. The user
specification is not yet implemented)
-
taper - trace
taper implemented
-
DOC/GSAC.pdf/cps330g.pdf
-
Documentation was modified
to reflect new gsac commands, change to elocate,
and description of fmplot (duplicated in the DOC/SOURCE.pdf/cps330s.pdf
manual) and stereo
-
add convolve to gsac
-
test, test, test
-
document, document, document
